ABM7-25.000MHZ-B4-T数据手册 6035mm 25MHZ SMD ABM7,尺寸为6035mm,频率为25MHZ，美国艾博康晶振，进口无源晶体，贴片晶振，陶瓷谐振器，音叉晶体，水晶振动子，6035mm无源谐振器，低损耗晶振，高质量晶振，电脑专用晶振，调制解调器晶振，通讯设备晶振，轻薄型设备晶振，工业应用晶振。
SMD晶振产品主要应用范围：电脑，调制解调器，通讯设备，轻薄型设备，工业广泛的温度应用等领域。ABM7-25.000MHZ-B4-T数据手册 6035mm 25MHZ SMD ABM7.

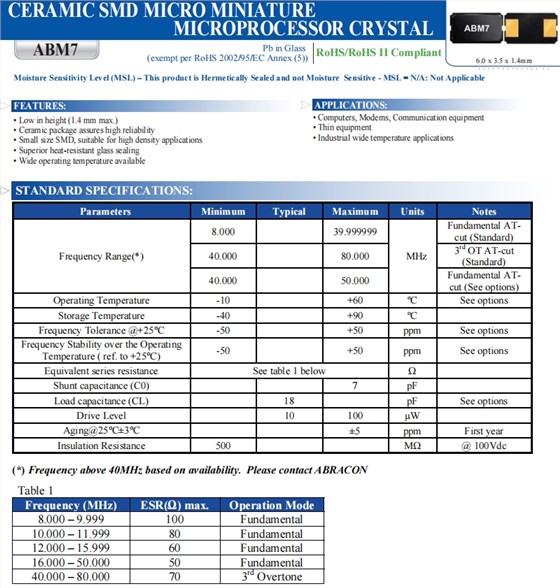

ABM7-25.000MHZ-B4-T数据手册 6035mm 25MHZ SMD ABM7 参数表
| Parameters | Minimum | Typical | Maximum | Units | Notes |
| 8 | 39.999999 | FundamentalAT-cut(Standard) | |||
| 40 | 80 | 3rdOTAT-cut(Standard) | |||
| FrequencyRange(*) | 40 | 50 | MHz | FundamentalAT-cut(Seeoptions) | |
| OperatingTemperature | -10 | 60 | ºC | See options | |
| Storage Temperature | -40 | 90 | ºC | ||
| FrequencyTolerance@+25°C | -50 | 50 | ppm | See options | |
| FrequencyStabilityovertheOperating | -50 | 50 | ppm | See options | |
| Temperature(ref.to+25°C) | |||||
| Equivalentseries resistance | See table 1 below | Ω | |||
| Shuntcapacitance(C0) | 7 | pF | |||
| Loadcapacitance(CL) | 18 | pF | Seeoptions | ||
| DriveLevel | 10 | 100 | µW | ||
| Aging@25°C±3°C | ±5 | ppm | First year | ||
| InsulationResistance | 500 | MΩ | @100Vdc | ||

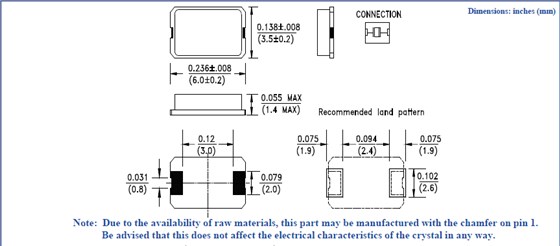

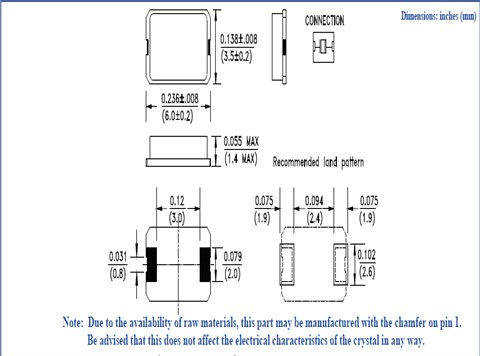

ABM7-25.000MHZ-B4-T数据手册 6035mm 25MHZ SMD ABM7尺寸图
特点
高度低(最大1.4毫米)
•陶瓷封装确保高可靠性
•小尺寸贴片，适合高密度应用
•优越的耐热玻璃密封
•工作温度范围广
