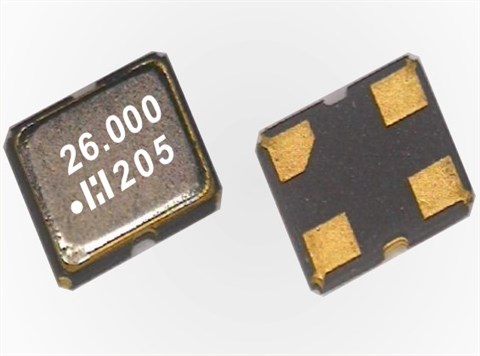

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic导航仪晶振，台湾Hosonic晶振，鸿星晶振，型号：D2SX系列贴片晶振，编码为：D2SX40E000001E，频率为：40MHz，电源电压：3.3V，频率稳定性：±25ppm，OSC振荡器，工作温度范围：-40℃至+85℃，小体积晶振尺寸：2.5x2.0x0.9mm，四脚贴片晶振，有源晶振，2520石英晶振，石英晶体振荡器，SMD晶振，具有超小型晶振，轻薄型晶振，高可靠性晶振，高品质晶振，耐热及耐环境等特点。应用程序：家庭安全设备，通讯设备，无线网络晶振，蓝牙模块晶振，导航晶振，医疗设备，数码电子等应用。

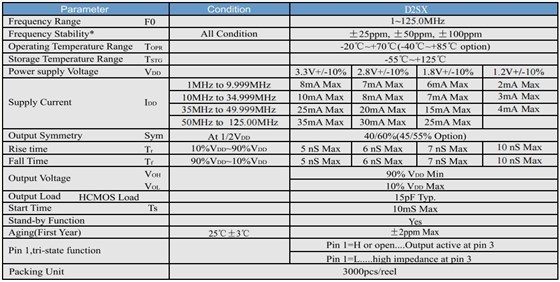

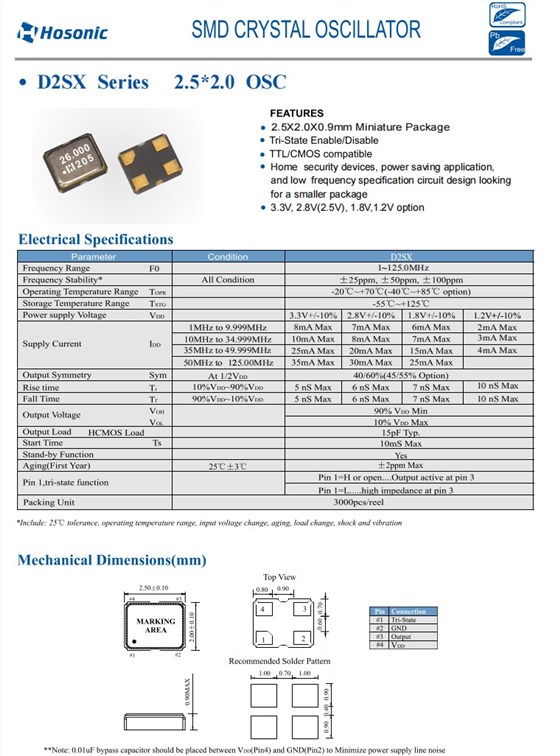

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic导航仪晶振,参数表

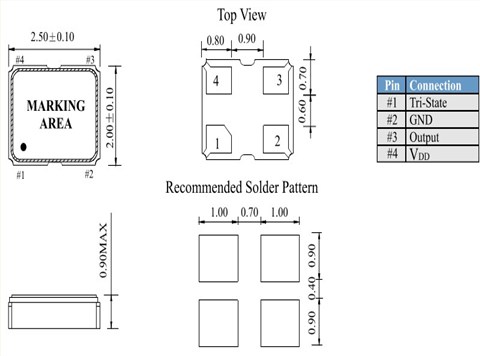

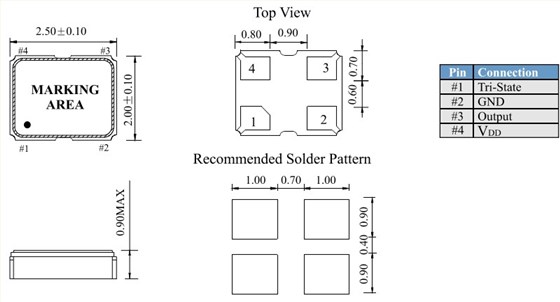

D2SX40E000001E,2520mm,D2SX,40MHz,Hosonic导航仪晶振,尺寸图
| 产品编码 | 小体积贴片晶振 | 系列 | 频率 | 电源电压 | 频率稳定性 |
| D3SX00327000ME | Hosonic鸿星 | D3SX | 32.768 kHz | 1.8V | ±25ppm |
| D2SX003270004E | Hosonic鸿星 | D2SX | 32.768 kHz | 1.8V | ±25ppm |
| D7SX4E000000UE | Hosonic鸿星 | D7SX | 4MHz | 3.3V | ±50ppm |
| D2SX25E00000BE | Hosonic鸿星 | D2SX | 25MHz | 3.3V | ±25ppm |
| D3SX38E0X0003E | Hosonic鸿星 | D3SX | 38.4MHz | 3.3V | ±25ppm |
| D3SX12E0X000BE | Hosonic鸿星 | D3SX | 12.288MHz | 1.8V | 15pF |
| D3SX12E00000HE | Hosonic鸿星 | D3SX | 12MHz | 3.3V | ±25ppm |
| D3SX24E000001E | Hosonic鸿星 | D3SX | 24MHz | 3.3V | ±25ppm |
| D3SX100E00007E | Hosonic鸿星 | D3SX | 100MHZ | 3.3V | ±30ppm |
| D3SX50E000002E | Hosonic鸿星 | D3SX | 50MHZ | 3.3V | ±30ppm |
| D3SX20E000001E | Hosonic鸿星 | D3SX | 20MHz | 3.3V | ±25ppm |
| D2SX100E00003E | Hosonic鸿星 | D2SX | 100MHz | 1.8V | ±25ppm |
| D2SX50E000009E | Hosonic鸿星 | D2SX | 50MHz | 3.3V | ±25ppm |
| D3SX40E00000EE | Hosonic鸿星 | D3SX | 40MHz | 3.3V | ±25ppm |
| D2SX40E000001E | Hosonic鸿星 | D2SX | 40MHz | 3.3V | ±25ppm |
| D3SX25E000006E | Hosonic鸿星 | D3SX | 25MHz | 3.3V | ±25ppm |
| D2SX20E000000E | Hosonic鸿星 | D2SX | 20MHZ | 3.3V | ±30ppm |
| D36B62.5000NNS | Hosonic鸿星 | HXO-36 | 62.5MHz | 3.3V | ±50ppm |
| D36B3.68640NNS | Hosonic鸿星 | HXO-36 | 3.6864MHz | 3.3V | ±50ppm |
| D36B4.00000NNS | Hosonic鸿星 | HXO-36 | 4MHz | 3.3V | ±50ppm |
| D36B6.00000NNS | Hosonic鸿星 | HXO-36 | 6MHz | 3.3V | ±50ppm |
| D36B8.00000NNS | Hosonic鸿星 | HXO-36 | 8MHz | 3.3V | ±50ppm |
| D36B10.0000NNS | Hosonic鸿星 | HXO-36 | 10MHz | 3.3V | ±50ppm |
| D36B12.0000NNS | Hosonic鸿星 | HXO-36 | 12MHz | 3.3V | ±50ppm |
| D36B14.3181NNS | Hosonic鸿星 | HXO-36 | 14.3181MHz | 3.3V | ±50ppm |
| D36B14.7456NNS | Hosonic鸿星 | HXO-36 | 14.7456MHz | 3.3V | ±50ppm |
| D36B16.0000NNS | Hosonic鸿星 | HXO-36 | 16MHz | 3.3V | ±50ppm |
| D36B18.4320NNS | Hosonic鸿星 | HXO-36 | 18.432MHz | 3.3V | ±50ppm |
| D36B20.0000NNS | Hosonic鸿星 | HXO-36 | 20MHz | 3.3V | ±50ppm |
| D36B24.0000NNS | Hosonic鸿星 | HXO-36 | 24MHz | 3.3V | ±50ppm |
| D36B24.5760NNS | Hosonic鸿星 | HXO-36 | 24.576MHz | 3.3V | ±50ppm |
| D36A25.0000WTS | 有源晶振 | HXO-36 | 25MHz | 3.3V | ±50ppm |
| D36B27.0000NNS | Hosonic鸿星 | HXO-36 | 27MHz | 3.3V | ±50ppm |
| D36B33.0000NNS | Hosonic鸿星 | HXO-36 | 30MHz | 3.3V | ±50ppm |
| D36B33.3330NNS | Hosonic鸿星 | HXO-36 | 33.333MHz | 3.3V | ±50ppm |
| D36B48.0000NNS | Hosonic鸿星 | HXO-36 | 48MHz | 3.3V | ±50ppm |
| D36B50.0000NNS | Hosonic鸿星 | HXO-36 | 50MHz | 3.3V | ±50ppm |
| D36B66.0000NNS | Hosonic鸿星 | HXO-36 | 66MHz | 3.3V | ±50ppm |
| D36B100.000NNS | Hosonic鸿星 | D36B | 100MHz | 3.3V | ±50ppm |
| D36B125.0000NTS | Hosonic鸿星 | D36B | 125MHz | 2.5V | ±50ppm |
| D56A25.0000WTS | Hosonic鸿星 | HXO-56 | 25 MHz | 3.3V | ±50ppm |
| D56A30.0000MTS | Hosonic鸿星 | HXO-56 | 30Mhz | 3.3V | ±50ppm |
| D56B12.0000NNS | Hosonic鸿星 | HXO-56 | 12 MHz | 3.3V | ±50ppm |
| D56B14.7456NNS | Hosonic鸿星 | HXO-56 | 14.745MHz | 3.3V | ±50ppm |
| D56B16.0000NNS | Hosonic鸿星 | HXO-56 | 16 MHz | 3.3V | ±50ppm |
| D56B24.0000NNS | Hosonic鸿星 | HXO-56 | 24 MHz | 3.3V | ±50ppm |
| D56B25.0000NNS | Hosonic鸿星 | HXO-56 | 25 MHz | 3.3V | ±50ppm |
| D56B33.0000WTS | Hosonic鸿星 | HXO-56 | 33MHz | 3.3V | ±50ppm |
| D56B50.0000NNS | Hosonic鸿星 | HXO-56 | 50 MHz | 3.3V | ±50ppm |
| DSCB4.91520NNS | Hosonic鸿星 | HXO-SC | 4.9152MHZ | 3.3V | ±50ppm |
| DSCB14.3181NNS | Hosonic鸿星 | HXO-SC | 14.3181MHZ | 3.3V | ±50ppm |
| DSCB20.0000NNS | Hosonic鸿星 | HXO-SC | 20 MHz | 3.3V | ±50ppm |
| DSCB24.0000NNS | Hosonic鸿星 | HXO-SC | 24 MHz | 3.3V | ±50ppm |
| DSCB25.0000NNS | Hosonic鸿星 | HXO-SC | 25 MHz | 3.3V | ±50ppm |
| DSCB27.0000NNS | Hosonic鸿星 | HXO-SC | 27 MHz | 3.3V | ±50ppm |
