ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振

产品简介

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振，英国进口晶振，AEL晶振，艾尔晶振，型号：ELM12W晶振，编码为：ELM12W-24.000MHz-6-R120-D7X-T，频率为：24.000MHz，负载电容：6pF，频率稳定性：±20ppm，频率容差：±15ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.2mm封装，四脚贴片晶振，1612晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无源晶振，无铅环保晶振。具有超小型，轻薄型，高品质，耐热及耐环境等特点。被广泛应用于：无线蓝牙晶振，可穿戴设备晶振，小型便捷式设备，手机晶振，游戏机设备，遥控器晶振，安防设备等应用。

产品详情

1

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振，英国进口晶振，AEL晶振，艾尔晶振，型号：ELM12W晶振，编码为：ELM12W-24.000MHz-6-R120-D7X-T，频率为：24.000MHz，负载电容：6pF，频率稳定性：±20ppm，频率容差：±15ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.2mm封装，四脚贴片晶振，1612晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无源晶振，无铅环保晶振。具有超小型，轻薄型，高品质，耐热及耐环境等特点。被广泛应用于：无线蓝牙晶振，可穿戴设备晶振，小型便捷式设备，手机晶振，游戏机设备，遥控器晶振，安防设备等应用。

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振，产品特点：

•SMD石英晶体谐振器
•公差：±10ppm可用
•工作温度0°C至+50°C至-40°C至+85°C

2

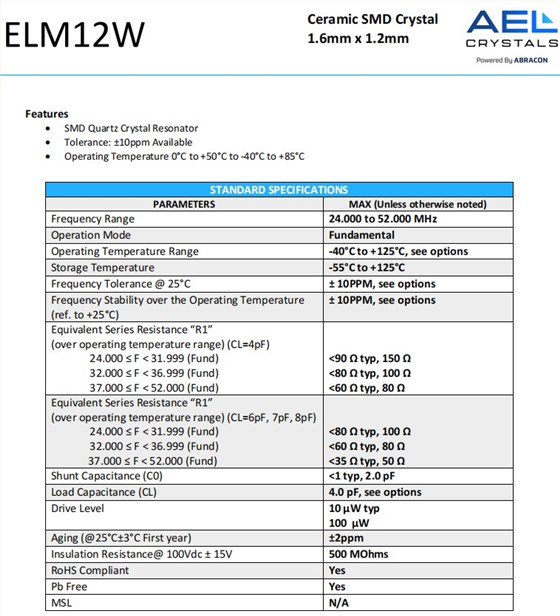

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振,参数表

STANDARD SPECIFICATIONS
PARAMETERS MAX (Unless otherwise noted)
Frequency Range 24.000MHz
Operation Mode Fundamental
Operating Temperature Range -40°C to +125°C, see options
Storage Temperature -55°C to +125°C
Frequency Tolerance @ 25°C ± 10PPM, see options
Frequency Stability over the Operating Temperature
(ref. to +25°C) 		± 10PPM, see options
Equivalent Series Resistance “R1”
(over operating temperature range) (CL=4pF)
24.000 ≤ F < 31.999 (Fund)
32.000 ≤ F < 36.999 (Fund)
37.000 ≤ F < 52.000 (Fund) 		<90Ωtyp, 150Ω
<80Ωtyp, 100Ω
<60Ωtyp, 80Ω
Equivalent Series Resistance “R1”
(over operating temperature range) (CL=6pF, 7pF, 8pF)
24.000 ≤ F < 31.999 (Fund)
32.000 ≤ F < 36.999 (Fund)
37.000 ≤ F < 52.000 (Fund) 		<80Ωtyp, 100Ω
<60Ωtyp, 80Ω
<35Ωtyp, 50Ω
Shunt Capacitance (C0) <1 typ, 2.0 pF
Load Capacitance (CL) 4.0 pF, see options
Drive Level 10 μW typ
100 μW
Aging (@25°C±3°C First year) ±2ppm
Insulation Resistance@ 100Vdc ± 15V 500 MOhms
RoHS Compliant Yes
Pb Free Yes
MSL N/A

3

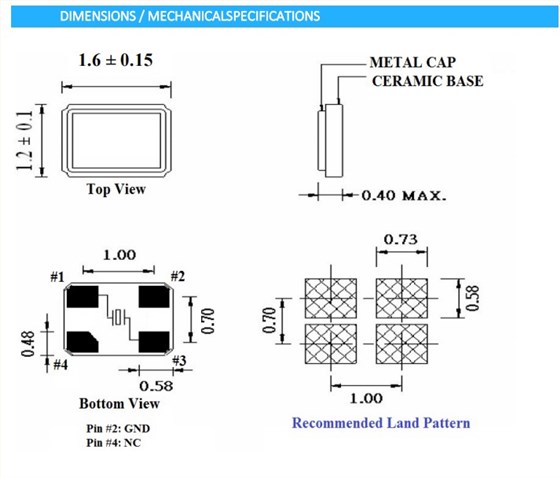

ELM12W-24.000MHz-6-R120-D7X-T,ELM12W,24MHz,1612mm,AEL晶振,尺寸图

ELM12W尺寸

ELM12W规格

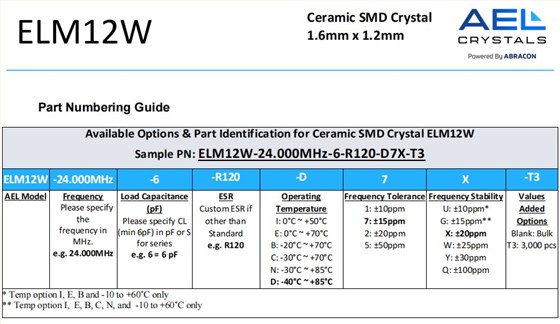

ELM12W编码

产品编码 晶振厂家 型号 频率 负载电容 长度 宽度 高度
ELLS-10.000MHz-20-R60-J-Q-F-T AEL晶振 ELLS 10 MHz 20 pF 12.3mm 4.6mm 4.3mm
ELLS-12.000MHz-18-R60-A-4-F-T AEL晶振 ELLS 12 MHz 18 pF 12.3mm 4.6mm 4.3mm
ELLS-13.560MHz-10-R35-A4Y-F-T AEL晶振 ELLS 13.56 MHz 10 pF 12.3mm 4.6mm 4.3mm
ELLS-30.000MHz-10-R50-B1U-F-T AEL晶振 ELLS 30 MHz 10 pF 12.3mm 4.6mm 4.3mm
ELLS-4.000MHz-16-R120-A4-F-T AEL晶振 ELLS 4 MHz 16 pF 12.3mm 4.6mm 4.3mm
ELLS-4.000MHz-16-R120-B1X-F-T AEL晶振 ELLS 4 MHz 16 pF 12.3mm 4.6mm 4.3mm
ELLS-4.000MHz-30-R120-D4-F-T AEL晶振 ELLS 4 MHz 30 pF 12.3mm 4.6mm 4.3mm
ELLS-8.000MHz-16-R45-D4-F-T AEL晶振 ELLS 8 MHz 16 pF 12.3mm 4.6mm 4.3mm
ELM10-16.000MHz-8-R60-2-D20-T AEL晶振 ELM10 16 MHz 8 pF 2.5mm 2mm 0.5mm
ELM10-24.000MHz-16-R100-X-N15-T AEL晶振 ELM10 24 MHz 16 pF 2.5mm 2mm 0.5mm
ELM11-32.000MHz-10-R60-D1X-T AEL晶振 ELM11 32 MHz 10 pF 2mm 1.6mm 0.5mm
ELM12W-24.000MHz-6-R120-D7X-T AEL晶振 ELM12W 24 MHz 6 pF 1.6mm 1.2mm 0.4mm
ELM3-12.000MHz-30-R80-D4Y-T AEL晶振 ELM3 12 MHz 30 pF 5mm 3.2mm 1mm
ELM3-14.000MHz-30-R80-D4H-T AEL晶振 ELM3 14 MHz 30 pF 5mm 3.2mm 1mm
ELM3-24.000MHz-18-R40-D4H-T AEL晶振 ELM3 24 MHz 18 pF 5mm 3.2mm 1mm
ELM3-8.057MHz-18-R100-B4Y-T AEL晶振 ELM3 8.057 MHz 18 pF 5mm 3.2mm 1mm
ELM8-12.000MHz-10-R50-D4Y-T AEL晶振 ELM8 12 MHz 10 pF 3mm 2.5mm 0.6mm
ELM8-12.5829MHz-16-R60-1U-T AEL晶振 ELM8 12.5829 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-14.000MHz-16-R150-B1U-T AEL晶振 ELM8 14.8 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-18.432MHz-16-R80-DQ-T 贴片晶振 ELM8 18.432 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-24.000MHz-10-R60-D1W-T AEL晶振 ELM8 24 MHz 10 pF 3mm 2.5mm 0.6mm
ELM8-24.000MHz-18-R60-B1W-T AEL晶振 ELM8 24 MHz 18 pF 3mm 2.5mm 0.6mm
ELM8-24.000MHz-9-R40-N1U-T AEL晶振 ELM8 24 MHz 9 pF 3mm 2.5mm 0.6mm
ELM8-26.000MHz-18-R60-B1U-T AEL晶振 ELM8 26 MHz 18 pF 3mm 2.5mm 0.6mm
ELM8-32.000MHz-16-R40-B1U-T AEL晶振 ELM8 32 MHz 16 pF 3mm 2.5mm 0.6mm
ELM8-32.000MHz-9-R40-D1G-T AEL晶振 ELM8 32 MHz 9 pF 3mm 2.5mm 0.6mm
ELS05-32.768kHz-9-T AEL晶振 ELS05 32.768 kHz 9 pF 1.6mm 1mm 0.5mm
ELS06-32.768kHz-9-T AEL晶振 ELS06 32.768 kHz 9 pF 2mm 1.2mm 0.6mm
ELS07-32.768kHz-6-T AEL晶振 ELS07 32.768 kHz 6 pF 3.2mm 1.5mm 0.75mm
ELS07-32.768kHz-T AEL晶振 ELS07 32.768 kHz 12.5 pF 3.2mm 1.5mm 0.75mm
ELS13-32.768kHz-7-T AEL晶振 ELS13 32.768 kHz 7 pF 7mm 1.5mm 1.4mm
ELS13-32.768kHz-9-T AEL晶振 ELS13 32.768 kHz 9 pF 7mm 1.5mm 1.4mm
ELS13-32.768kHz-T AEL晶振 ELS13 32.768 kHz 12.5 pF 7mm 1.5mm 1.4mm
ELS25-32.768kHz-6-2-T AEL晶振 ELS25 32.768 kHz 6 pF 8mm 3.8mm 2.4mm
ELS25-32.768kHz-T AEL晶振 ELS25 32.768 kHz 12.5 pF 8mm 3.8mm 2.4mm
