产品简介

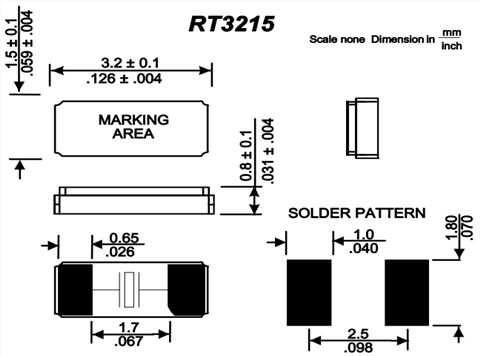

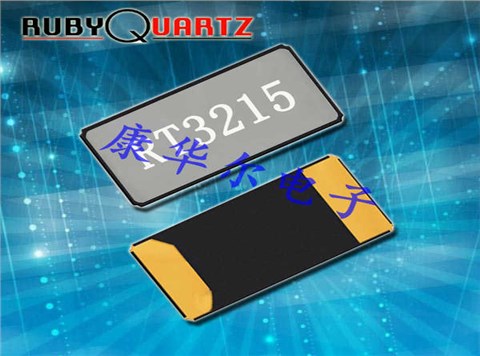

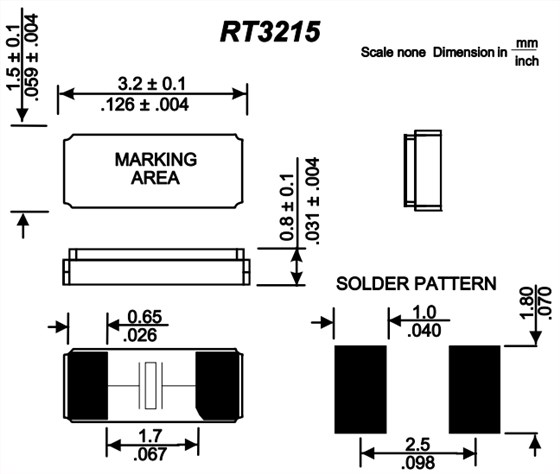

RT3215-32.768-9-12.5-TR\Rubyquartz卢柏无源晶体RT3215,6G无线通信晶振，尺寸3.2x1.5mm，频率32.768KHZ，欧美进口晶振，无源贴片晶振，两脚贴片晶振，石英贴片晶振，无源石英晶体，石英晶体谐振器，3215mm无源晶体，32.768K晶振，32.768KHZ音叉晶振，无源晶振，SMD晶振，32.768K贴片晶振，轻薄型晶体，低损耗晶振，低功耗晶振，高性能晶振，无铅环保晶振，时钟应用晶振，计算器专用晶振，定时器无源晶振，蓝牙耳机专用晶振，小型设备晶振，6G无线通信专用晶振，产品具有轻薄小低损耗的特点。

SMD晶振产品适合用于时钟应用，计算器，定时器，蓝牙耳机，小型设备，6G无线通信等领域。RT3215-32.768-9-12.5-TR\Rubyquartz卢柏无源晶体RT3215,6G无线通信晶振.

产品详情

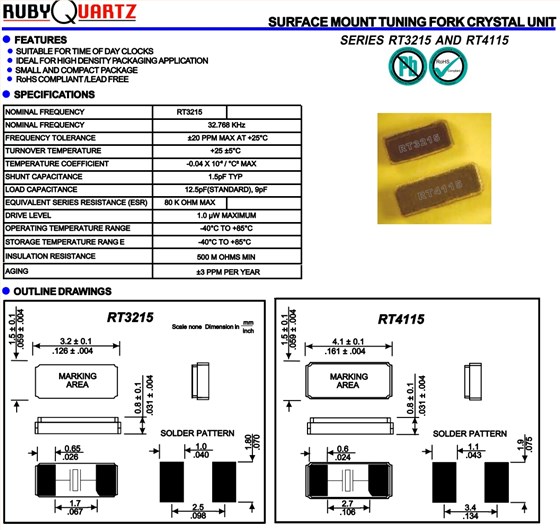

RT3215-32.768-9-12.5-TR\Rubyquartz卢柏无源晶体RT3215,6G无线通信晶振 参数表

NOMINAL FREQUENCY	RT3215
NOMINAL FREQUENCY	32.768 KHz
FREQUENCY TOLERANCE AT 25°C	±20 PPM MAX AT+25°C
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC CURVATURE CONSTANT	-0.04 *10-6 /°C2 MAX
SHUNT CAPACITANCE	1.5 pF TYP
LOAD CAPACITANCE	12.5 pF(STANDARD),9pF
EQUIVALENT SERIES RESISTANCE (ESR)	80K OHMS MAX
DRIVE LEVEL	1 µW MAXIMUM
OPERATING TEMPERATURE	-40°C TO +85°C
STORAGE TEMPERATURE	-40°C TO +125°C
INSULATION RESISTANCE	500M OHM MINIMUM
AGING (FIRST YEAR)	±3 PPM PER YEAR
