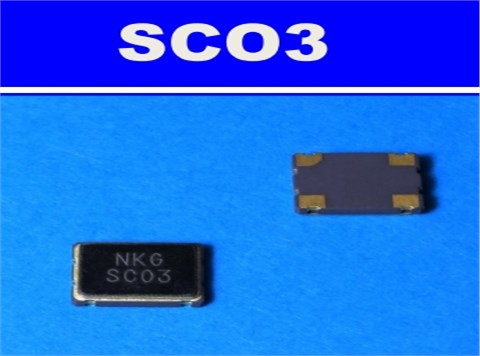

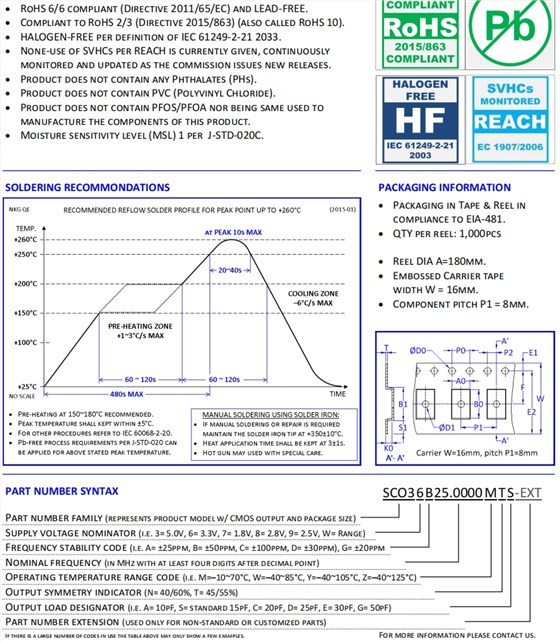

NKG有源晶振,7050mm,SCO36B40.000MTS-EXT,SCO3系列,40MHZ特点:
SMD封装尺寸7.0 x 5.0 x 1.3mm，带4个焊盘。
高度可靠的接缝密封包装，低老化。
OSC晶振提供超低抖动和相位噪声版本。
可提供符合AEC-Q200标准的汽车级。

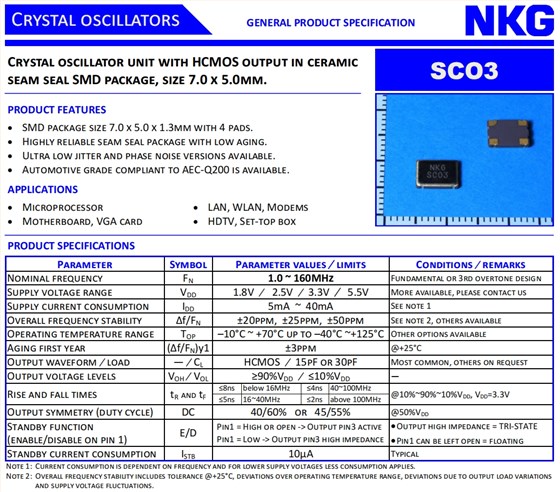

NKG有源晶振,7050mm,SCO36B40.000MTS-EXT,SCO3系列,40MHZ 参数表
Parameter
Symbol
Parameter values ? limits
Conditions?remarks
Nominal frequency
FN
40MHz
Fundamental or 3rd overtone design
Supply voltage range
VDD
1.8V?2.5V?3.3V ?5.5V
More available, please contact us
Supply current consumption
IDD
5mA~40mA
See note 1
Overall frequency stability
?f/FN
±20ppm,±25ppm,±50ppm
See note 2,others available
Operating temperature range
TOP
– 10°C ~ +70°C up to –40°C ~+125°C
Other options available
Aging first year
(Δf/FN)y1
±3ppm
@+25°C
Output waveform?load
—?CL
HCMOS?15pF or 30pF
Most common, others on request
Output voltage levels
VOH?VOL
≥90%VDD?≤10%VDD
—
Rise and fall times
tRandtF
≤8ns
below 16MHz
≤4ns
40~100MHz
@10%~90%~10%VDD, VDD=3.3V
≤5ns
16~40MHz
≤2ns
above 100MHz
Output symmetry (duty cycle)
DC
40/60%or45/55%
@50%VDD
Standby function
(enable/disable on pin 1)
E/D
Pin1 = High or open -> Output pin3 active
Pin1 = Low -> Output pin3 high impedance
.Output high impedance = TRI-STATE
.Pin1 can be left open = floating
Standby current consumption
ISTB
10µA
Typical

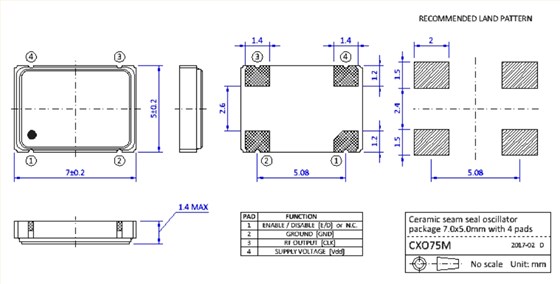

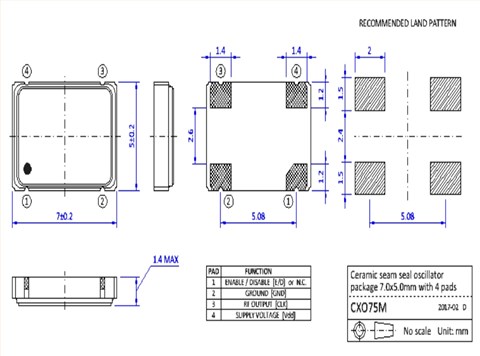

NKG有源晶振,7050mm,SCO36B40.000MTS-EXT,SCO3系列,40MHZ尺寸图
