CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K时钟振荡器,荷兰进口晶振,有源晶振,32.768K时钟晶振,有源贴片晶振,OSC晶振,2520石英振荡器,四脚有源晶振,CMOS输出晶振,尺寸2.5x2.0mm,频率32.768KHZ,电压1.8V,频率稳定性20ppm,输出CMOS,低功耗晶振,低电压晶振,高品质晶振,高质量晶振,无线局域网晶振,蓝牙晶振,移动通信晶振,娱乐设备晶振.
CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K时钟振荡器特点:
OscillatorCrystal超小型封装
低电流消耗
扩展可用的温度范围
应用：无线局域网、蓝牙和移动通信.
CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K时钟振荡器 参数表
|
Item Frequency Range |
Speci?cation 32.768 kHz |
|||||||||||
| Output Logic | CMOS | |||||||||||
| Overall Frequency Stability * | ± 20 ppm ~ ± 100 ppm(see options) | |||||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | |||||||||||
| -40 ~ +85°C industrial application (see options) | ||||||||||||
   +5.0V ±5%
|
||||||||||||
| Supply CurrentIdd | 1.0 mA max | 1.0 mA max | ||||||||||
  VOL ≤ 0.1 Vdd
|
||||||||||||
| Output Load | 15 pF | |||||||||||
| Symmetry | 45 / 55 % | |||||||||||
|
Rise Time / Fall TimeFr/Ff |
 6 ns max
|
|||||||||||
|
pin #3 ==>oscillation pin #3 ==>high impedance |
||||||||||||
| Start-up Time | 35 ms max. | |||||||||||
| Packing Unit | 3000pcs / reel | |||||||||||
| Soldering Condition | 260°C , 10 sec x2 max | |||||||||||

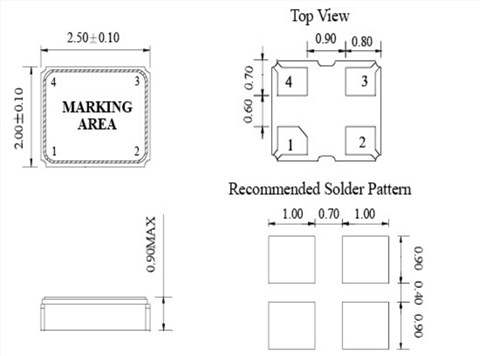

CMOS,FCD-TechCrystal,SX2K-18K20E-32.768kHz,2520mm,32.768K时钟振荡器尺寸图
