爱普生差分晶振,X1G0059410603,6G光模块晶振,SG2520VHN石英振荡器

爱普生差分晶振,X1G0059410603,6G光模块晶振,SG2520VHN石英振荡器，尺寸为2.5*2.0mm,频率400MHZ，差分晶振LVDS，OSC差分振荡器，低抖动差分晶振，低电压差分晶振，轻薄型差分晶振，进口有源晶振，EPSON晶振，有源晶体振荡器，5G/6G将使网络通信流量呈指数级增长。5G/6G通信网络要求高速宽频带，同时把噪音降到最低。这可以通过高频率，用于通信设备的低抖动参考时钟。光通信模块为400gbps/800gbps传输超过80公里需要一个小的外形因素，±20×10-6的稳定性参考时钟。SG2016VHN/SG2520VHN是非常受欢迎的SG3225VEN系列的下一代产品具有广泛的可用频率范围，低抖动和改进的频率容限的功能组合由于采用了内部设计的具有温度补偿的集成电路，其封装尺寸缩小了63%。

OSC晶振产品主要应用范围广泛,其中包含6G光模块，通信设备，无线网络，仪器设备，网络设备(路由器、交换机、光模块等)，数据中心，测试和测量设备，工厂自动化，高速转换器，如ADC和DAC等领域。爱普生差分晶振,X1G0059410603,6G光模块晶振,SG2520VHN石英振荡器.

爱普生差分晶振,X1G0059410603,6G光模块晶振,SG2520VHN石英振荡器参数表

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Maximum supply voltage

VCC

-0.3

4.0

Input voltage

Vin

-0.3

VCC+ 0.5

一一
OE/ST terminal

Storage temperature range

T_stg

-55

+125

°C

[ 3 ] Operating Range

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Supply voltage

VCC

1.71

1.8

1.89

Suffix: E, Output option: A or C

2.375

2.5

2.625

Suffix: D

3.135

3.3

3.465

Suffix: C

Supply voltage

GND

0.0

Operating temperature range

T_use

-40

+25

+85

°C

Suffix: G

-40

+25

+105

°C

Suffix: H

LVDS load condition

L_LVDS

100

* Power supply startup time (0 %VCC→90 %VCC) should be more than 150 μs
* A 0.1 μF and a 10 μF bypass capacitor should be connected between VCCand GND pins located close to the device

[ 4 ] Frequency Characteristics(Unless stated otherwise [ 3 ] Operating Range)

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Output frequency *1

400

MHz

Frequency tolerance *2

f_tol

-20

+20

×10-6

Suffix: C

Parameter	Symbol	Specification			Unit	Conditions
		Min.	Typ.	Max.
Startup time	t_str	-	-	10	ms	t = 0 at 90 % VCC
Current consumption	ICC	-	-	25	mA	Output option: A, fo < 212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: A, fo≥212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: B, fo < 212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	35	mA	Output option: B, fo≥212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: C, fo < 212 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	28	mA	Output option: C, 212 MHz≤fo < 392 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	30	mA	Output option: C, fo≥392 MHz VCC= 2.5 V, 3.3 V Typ.
		-	-	25	mA	Output option: A or C VCC= 1.8 V Typ.
Disable current	I_dis	-	-	20	mA	OE = GND
Stand-by current	I_std	-	-	30	μA	= GND, T_use Max. = +85 °C
		-	-	60	μA	= GND, T_use Max. = +105 °C
Rise time / Fall time	tr / tf	-	-	0.35	ns	20 % - 80 % of VSW
Symmetry	SYM	45	50	55	%	At output crossing point
Output voltage	VOD	250	-	450	mV	Output option: A
		400	-	800	mV	Output option: B Not available for VCC= 1.8 V Typ.
		300	-	600	mV	Output option: C
	dVOD	-	-	50	mV	\|VOD1- VOD2\|
	VOS	1.15	-	1.35	V	VCC= 2.5 V, 3.3 V Typ.
		0.65	-	0.85	V	VCC= 1.8 V Typ.
	dVOS	-	-	50	mV	\|VOS1- VOS2\|
Differential swing	VSW	500	-	900	mV	Output option: A
		800	-	1 600	mV	Output option: B Not available for VCC= 1.8 V Typ.
		600	-	1 200	mV	Output option: C
Input voltage	VIH	70 % VCC	-	-	V	OE/terminal
	VIL	-	-	30 % VCC	V
Output disable time (OE)	tstp_oe	-	-	100	ns	Measured from the time OE pin crosses 30 % VCC
Output disable time (ST)	tstp_st	-	-	100	ns	Measured from the time pin crosses 30 % VCC
Output enable time (OE)	tsta_oe	-	-	500	ns	Measured from the time OE pin crosses 70 % VCC
Output enable time (ST)	tsta_st	-	-	10	ms	Measured from the time pin crosses 70 % VCC
Phase jitter VCC= 2.5 V, 3.3 V Typ. Offset frequency fo < 50 MHz; 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz	tPJ	-	-	250	fs	fo < 100 MHz
		-	-	100	fs	100 MHz≤fo≤156 MHz
		-	-	60	fs	156 MHz < fo≤212 MHz
		-	-	50	fs	fo > 212 MHz
Phase jitter VCC= 1.8 V Typ. Offset frequency fo < 50 MHz: 12 kHz to 5 MHz fo≥50 MHz: 12 kHz to 20 MHz		-	-	400	fs	fo < 100 MHz
		-	-	130	fs	100 MHz≤fo≤156 MHz
		-	-	70	fs	156 MHz < fo≤212 MHz
		-	-	60	fs	fo > 212 MHz

Parameter

Symbol

Specification

Unit

Conditions

Min.

Typ.

Max.

Junction temperature

140

°C

Junction to case

θjc

114

°C/W

SG2016VHN

122

°C/W

SG2520VHN

Junction to ambient

θja

243

°C/W

SG2016VHN

155

°C/W

SG2520VHN

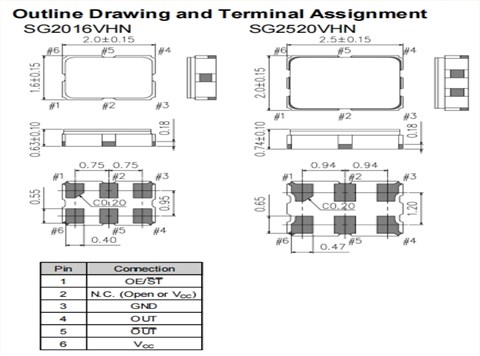

爱普生差分晶振,X1G0059410603,6G光模块晶振,SG2520VHN石英振荡器 尺寸图

产品特性：

SPXO晶体振荡器

频率范围(fo): 25 MHz至500MHZ

输出:LVDS

电源电压:1.8V型。/ 2.5V/3.3V类型

工作温度:-40℃~+105℃

频率公差:±20×10-6

低相位抖动:38fs(fo = 156.25MHz)

更多相关EPSON爱普生晶振型号

编码	Model/型号	Frequency/频率	LxWxH/尺寸	Output Wave/输出方式	Supply Voltage/电源电压	Ope Temperature/工作温度
X1M0003410025	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410026	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410027	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410028	XG-2102CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410029	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410030	XG-2102CA	192.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410031	XG-2102CA	140.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410032	XG-2102CA	166.666666 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410033	XG-2102CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410034	XG-2102CA	122.880000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410035	XG-2102CA	388.080000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410036	XG-2102CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410037	XG-2102CA	161.133000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410038	XG-2102CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410039	XG-2102CA	625.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410040	XG-2102CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410041	XG-2102CA	166.666700 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410042	XG-2102CA	700.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410043	XG-2102CA	644.532150 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410044	XG-2102CA	439.453125 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003410045	XG-2102CA	161.133000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410047	XG-2102CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410048	XG-2102CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003410049	XG-2102CA	144.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410050	XG-2102CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0003410052	XG-2102CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0003510001	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510002	XG-2121CA	133.330000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510003	XG-2121CA	150.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510004	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510005	XG-2121CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510006	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510007	XG-2121CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510008	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510009	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510010	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510011	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510012	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510013	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510014	XG-2121CA	133.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510015	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510016	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510017	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510018	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510019	XG-2121CA	320.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510020	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510021	XG-2121CA	312.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510022	XG-2121CA	300.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510029	XG-2121CA	402.832000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510030	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510032	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510033	XG-2121CA	322.265625 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510034	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510035	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510036	XG-2121CA	100.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510037	XG-2121CA	125.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510038	XG-2121CA	156.250000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0003510039	XG-2121CA	200.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003510040	XG-2121CA	250.000000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.375 to 2.625 V	0 to 70 °C
X1M0003610001	XG-2103CA	212.500000 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0003610002	XG-2103CA	133.333333 MHz	7.00 x 5.00 x 1.20 mm	LVDS	2.970 to 3.630 V	-20 to 70 °C
X1M0004210002	MG7050VAN	212.500000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0004210003	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0004210004	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0004210005	MG7050VAN	644.531250 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0004210006	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-20 to 70 °C
X1M0004210007	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210008	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210009	MG7050VAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210010	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210011	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210012	MG7050VAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210013	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210014	MG7050VAN	200.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	-5 to 85 °C
X1M0004210015	MG7050VAN	322.265625 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.970 to 3.630 V	0 to 70 °C
X1M0004210016	MG7050VAN	125.000000 MHz	7.00 x 5.00 x 1.60 mm	LVDS	2.375 to 2.625 V	-5 to 85 °C
X1M0004310004	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310006	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310007	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004310008	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004310009	MG7050HAN	100.000000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310010	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004310011	MG7050HAN	156.250000 MHz	7.00 x 5.00 x 1.60 mm	HCSL	2.970 to 3.630 V	-20 to 70 °C
X1M0004610001	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.375 to 2.625 V	0 to 70 °C
X1M0004610002	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	0 to 70 °C
X1M0004610003	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1M0004610006	XG5032HAN	100.000000 MHz	5.00 x 3.20 x 1.40 mm	HCSL	2.970 to 3.630 V	-5 to 85 °C
X1G0059010001	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059010002	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059010003	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010004	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 105 °C
X1G0059010006	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059010007	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059010008	SG2520VGN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410001	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410002	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410003	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 105 °C
X1G0059410004	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410005	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS差分晶体振荡器	3.135 to 3.465 V	-40 to 105 °C
X1G0059410006	SG2520VHN	155.520000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410007	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410008	SG2520VHN	174.703000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 85 °C
X1G0059410009	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.375 to 2.625 V	-40 to 105 °C
X1G0059410010	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	3.135 to 3.465 V	-40 to 85 °C
X1G0059410011	SG2520VHN	156.250000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
X1G0059410603	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410604	SG2520VHN	400.000000 MHz	2.50 x 2.00 x 0.84 mm	LVDS	2.970 to 3.465 V	-40 to 85 °C
X1G0059410605	SG2520VHN	467.529297 MHz	2.50 x 2.00 x 0.84 mm	LVDS	1.710 to 1.890 V	-40 to 85 °C
