不同颜色苹果手机iPhone14系列维修碎屏价格与SG-8101CGA爱普生X1G005171008000

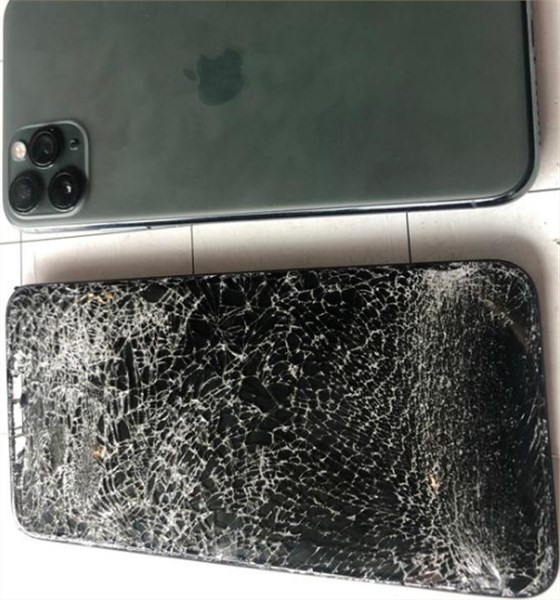

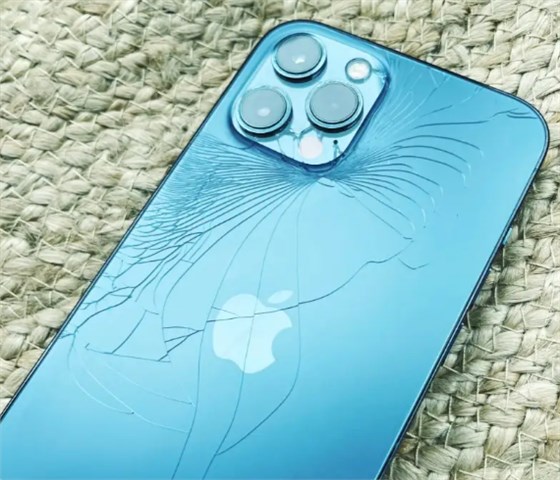

苹果iPhone14/Pro系列的官方保外维修价格出炉了,由于可单独拆卸iPhone14系列的玻璃背板维修价格比iPhone14Pro系列要便宜得多.iPhone14标准版：1298元iPhone14Plus：1548元iPhone14Pro：3598元iPhone14ProMax：3998元主板上、爱普生贴片晶振显示屏下都加了散热,拆解显示取下屏幕就已经可以看到新iPhone的大部分内部组件,打眼一看大多数组件的布局看起来与iPhone13ProMax很相似.有一个大的L型电池,左边是逻辑板,上面印有A16Bionic字样.
苹果手机iPhone14有源晶振,SG-8101CGA爱普生X1G005171008000晶振
爱普生有源晶振编码
型号
频率
长X宽X高
输出波
电源电压
工作温度
频差
最大值
X1G005171007900
SG-8101CGA
135.700000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤8.2mA

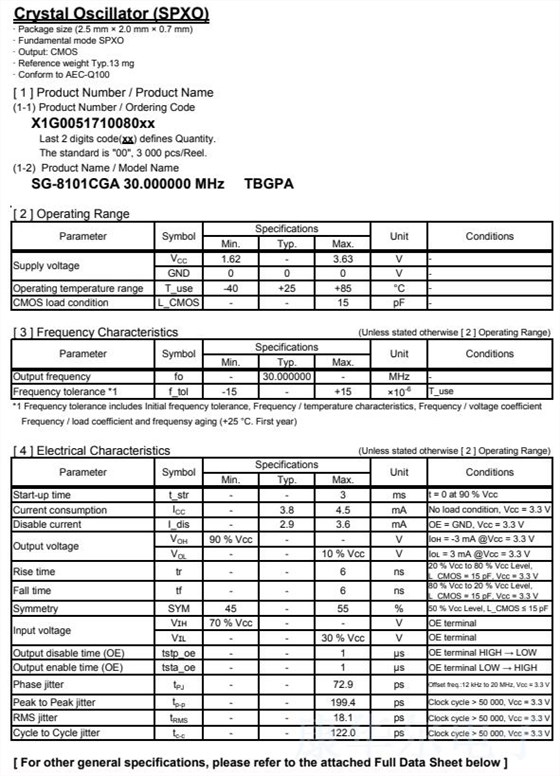

X1G005171008000
SG-8101CGA
30.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-15ppm
≤4.5mA
X1G005171008100
SG-8101CGA
24.576000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤4.5mA
X1G005171008200
SG-8101CGA
150.200000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤8.2mA
X1G005171008300
SG-8101CGA
150.800000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤8.2mA
X1G005171008400
SG-8101CGA
1.843200MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤3.6mA
X1G005171008500
SG-8101CGA
47.684000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤4.5mA
X1G005171008600
SG-8101CGA
9.900000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤3.6mA
X1G005171008700
SG-8101CGA
19.200000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤3.6mA
X1G005171008800
SG-8101CGA
140.500000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤8.2mA
X1G005171008900
SG-8101CGA
12.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to85°C
+/-15ppm
≤3.6mA
X1G005171009100
SG-8101CGA
88.200000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤6.1mA
X1G005171009200
SG-8101CGA
33.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤4.5mA
X1G005171009300
SG-8101CGA
27.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤4.5mA
X1G005171009400
SG-8101CGA
89.600000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤6.1mA
X1G005171009500
SG-8101CGA
58.100000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤5.3mA
X1G005171009600
SG-8101CGA
89.400000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤6.1mA
X1G005171009700
SG-8101CGA
26.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤4.5mA
X1G005171009800
SG-8101CGA
22.579200MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤4.5mA
X1G005171009900
SG-8101CGA
19.200000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤3.6mA
X1G005171010000
SG-8101CGA
18.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤3.6mA
X1G005171010100
SG-8101CGA
29.291200MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤4.5mA
X1G005171010200
SG-8101CGA
136.400000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤8.2mA
X1G005171010300
SG-8101CGA
66.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to105°C
+/-20ppm
≤5.3mA
X1G005171010400
SG-8101CGA
8.000000MHz
2.50x2.00x0.80mm
CMOS
1.620to3.630V
-40to125°C
+/-50ppm
≤3.6mA
iPhone14ProMax的拆解对新款iPhone机皇内部构造有一定的了解.从外观上看iPhone14ProMax与iPhone13ProMax几乎相同至少在息屏时,但在内部有一些明显的不同.
这个新的日产晶振逻辑板盖实际上是一块金属板上面有石墨垫.在显示屏幕背面也有石墨薄膜,都可以传递和散去热量.苹果在发布会上称为了更好地控制热量,所有iPhone14机型都更新了内部散热系统,可以更长时间地维持高性能输出.
