6G无线蓝牙晶振|HEC陶瓷谐振器|HE-MCC-125A-44.000F-E，尺寸7.0×5.0mm，频率44MHZ，HEC美国晶振，进口无源晶振，陶瓷谐振器，两脚贴片晶振，无源晶体，SMD晶振，无源贴片晶振，轻薄型晶振，无铅环保晶振，7050mm贴片晶体，高品质晶振，高性能晶振，低损耗无源晶体，智能手机晶振，仪器设备晶振，6G无线蓝牙晶振，便携式设备晶振，消费电子专用晶振，具有超高可靠性能以及稳定性能.

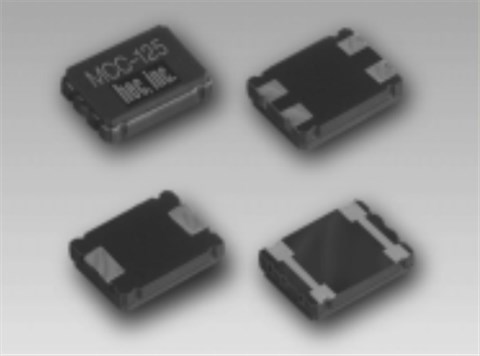

HE-MCC-125和HE-MCC-170系列是HEC的缩影陶瓷基表面贴装贴片晶振，封装高度为 只有1.25毫米/ 1.70毫米。这些晶体是玻璃密封在一个 陶瓷外壳，提供经济的成本和高可靠性。HEC提供三(3)种不同的真正SMD封装模式，扩展的温度范围是可选的。6G无线蓝牙晶振|HEC陶瓷谐振器|HE-MCC-125A-44.000F-E.

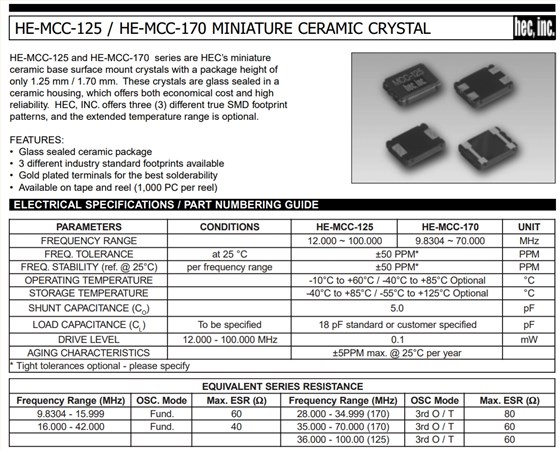

6G无线蓝牙晶振|HEC陶瓷谐振器|HE-MCC-125A-44.000F-E参数表
| ELECTRICAL SPECIFICATIONS / PART NUMBERING GUIDE | |||||||||||||||||||||||||||
| PARAMETERS | CONDITIONS | HE-MCC-125 | HE-MCC-170 | UNIT | |||||||||||||||||||||||
| FREQUENCY RANGE | 44.000 | 9.8304 ~ 70.000 | MHz | ||||||||||||||||||||||||
| FREQ. TOLERANCE | at 25 °C | ±50 PPM* | PPM | ||||||||||||||||||||||||
| FREQ. STABILITY (ref. @ 25°C) | per frequency range | ±50 PPM* | PPM | ||||||||||||||||||||||||
| OPERATING TEMPERATURE | -10°C to +60°C / -40°C to +85°C Optional | °C | |||||||||||||||||||||||||
| STORAGE TEMPERATURE | -40°C to +85°C / -55°C to +125°C Optional | °C | |||||||||||||||||||||||||
| SHUNT CAPACITANCE (CO) | 5.0 | pF | |||||||||||||||||||||||||
| LOAD CAPACITANCE (CL) | To be specified | 18 pF standard or customer specified | pF | ||||||||||||||||||||||||
| DRIVE LEVEL | 12.000 - 100.000 MHz | 0.1 | mW | ||||||||||||||||||||||||
| AGING CHARACTERISTICS | ±5PPM max. @ 25°C per year | ||||||||||||||||||||||||||
| * Tight tolerances optional - please specify | |||||||||||||||||||||||||||

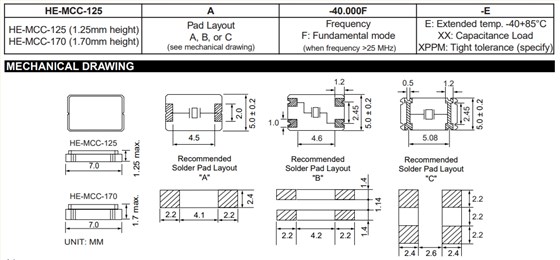

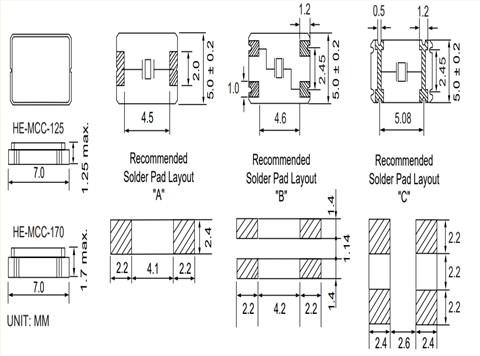

6G无线蓝牙晶振|HEC陶瓷谐振器|HE-MCC-125A-44.000F-E 尺寸图
陶瓷晶体产品特性：
玻璃密封陶瓷封装
提供3种不同的行业标准尺寸
镀金端子具有最佳的可焊性
提供磁带和卷轴(每卷1，000件)
