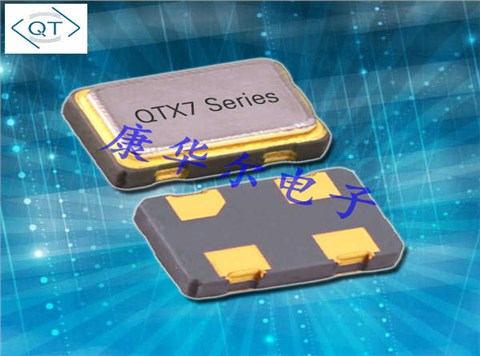

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik时钟振荡器，德国进口晶振，Quarztechnik晶振，夸克晶振，型号：QTX7系列，编码为：QTX733A16.0000B15M，频率为：16 MHz，电压3.3V，工作温度范围：-40℃至+85℃，频率稳定性：±25ppm，负载电容：15pF，小体积晶振尺寸：7.0x5.0x1.4mm封装，四脚贴片晶振，石英晶体振荡器，有源晶振，7050晶振，HCMOS时钟振荡器，无铅环保晶振。QX7振荡器由一个TTL/HCMOS兼容的混合电路和一个微型石英晶体组成，它封装在一个低轮廓的、工业标准的7x5毫米陶瓷封装中。5070晶振应用于：通讯设备，无线网络，蓝牙模块，物联网，GPS定位，车载导航仪，医疗设备，安防设备，平板电脑，数码电子等应用。
QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik时钟振荡器，产品特征：
•小型7.0x5.0x1.4mm封装石英晶体振荡器
•频率范围1MHz至155.520MHz
•标准的三态（启用/禁用）功能
•电源电压范围：1.8V、2.5V、3.3V或5.0V
•提供高输出负载版本（50pF）

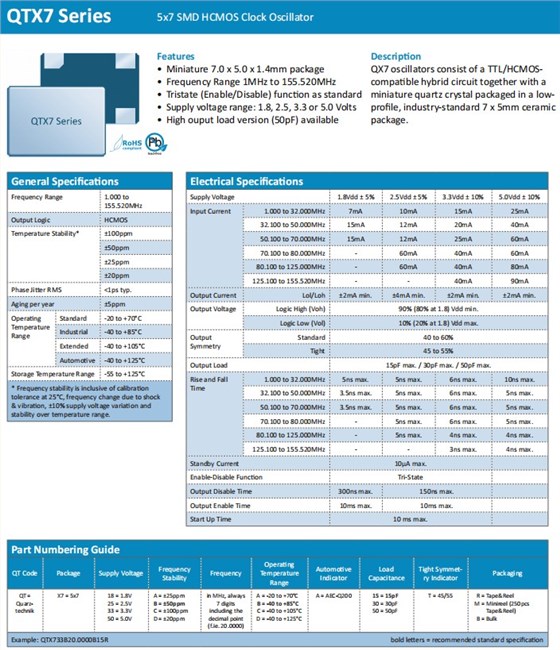

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik时钟振荡器,参数表
Supply Voltage
1.8Vdd ± 5%
2.5Vdd ± 5%
3.3Vdd ± 10%
5.0Vdd ± 10%
Input Current
1.000 to 32.000MHz
7mA
10mA
15mA
25mA
32.100 to 50.000MHz
15mA
12mA
20mA
40mA
50.100 to 70.000MHz
15mA
12mA
25mA
60mA
70.100 to 80.000MHz
-
60mA
40mA
60mA
80.100 to 125.000MHz
-
60mA
40mA
80mA
125.100 to 155.520MHz
-
-
40mA
90mA
Output Current
Lol/Loh
±2mA min.
±4mA min.
±2mA min.
±2mA min.
Output Voltage
Logic High (Voh)
90% (80% at 1.8) Vdd min.
Logic Low (Vol)
10% (20% at 1.8) Vdd max.
Output
Standard
40 to 60%
Symmetry
Tight
45 to 55%
Output Load
15pF max. / 30pF max. / 50pF max.
Rise and Fall
1.000 to 32.000MHz
5ns max.
5ns max.
6ns max.
10ns max.
Time
32.100 to 50.000MHz
3.5ns max.
5ns max.
6ns max.
5ns max.
50.100 to 70.000MHz
3.5ns max.
5ns max.
6ns max.
5ns max.
70.100 to 80.000MHz
-
5ns max.
6ns max.
5ns max.
80.100 to 125.000MHz
-
5ns max.
4ns max.
4ns max.
125.100 to 155.520MHz
-
-
3ns max.
4ns max.
Standby Current
10μA max.
Enable-Disable Function
Tri-State
Output Disable Time
300ns max.
150ns max.
Output Enable Time
10ms max.
10ms max.
Start Up Time
10 ms max.

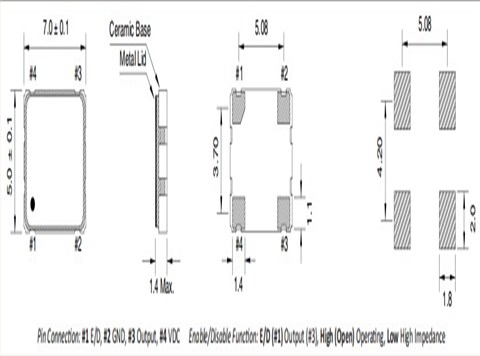

QTX733A16.0000B15M,16MHz,7050mm,Quarztechnik时钟振荡器,尺寸图
| 产品编码 | 频率 | 输出逻辑 | 电压 | 工作温度范围 | 频率稳定性 |
| QTX733A3.68640B15M | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A4.00000B15M | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A7.37280B15M | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A8.00000B15M | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A10.0000B15M | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A11.0592B15M | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A12.0000B15M | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A14.31818B15M | 14.31818 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A14.7456B15M | 14.7456 MHz | 石英晶振 | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A16.0000B15M | 16.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A16.3840B15M | 16.384 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A20.0000B15M | 20.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A24.5760B15M | 24.576 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A25.0000B15M | 25.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A27.0000B15M | 27.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A30.0000B15M | 30.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX733A32.0000B15M | 32.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A3.68640B15M | 3.6864 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A4.00000B15M | 4.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A7.37280B15M | 7.3728 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A8.00000B15M | 8.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A10.0000B15M | 10.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A11.0592B15M | 11.0592 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
| QTX533A12.0000B15M | 12.0 MHz | HCMOS | 3.3V | -40 - +85℃ | ±25ppm |
