CMOS,FCD-Tech移动设备晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振荡器特点:
标准微型包装
低电压,低电流有源晶振
应用：蓝牙，便携式电子设备，无线局域网.
CMOS,FCD-Tech移动设备晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振荡器 参数表
| Item | Specification | ||||||||
| Frequency Range | 32.0 MHz | ||||||||
| Output Logic | CMOS | ||||||||
| Overall Frequency Stability * | ± 20 ppm~± 100 ppm( see options ) | ||||||||
| Operating Temperature Range | 0 ~ +70°C commercial application (see options) | ||||||||
| -40 ~ +85°C industrial application (see options) | |||||||||
| Supply Voltage Vdd | +1.2V±5% | +1.5V±5% | |||||||
| Supply Current Idd | 4 mA max | 5 mA max | |||||||
| Output Level | VOH ≥ | 0.9 Vdd | VOL ≤ 0.1 Vdd | ||||||
| Output Load | 15 pF | ||||||||
| Symmetry | 45 / 55 % | ||||||||
| Rise Time / Fall TimeFr/Ff | 2~8 ns | ||||||||
| Tri-state function | pin #1 = high or | open | pin #3=oscillation | ||||||
| pin #1 = low | pin #3=high impedance | ||||||||
| Start-up Time | 10 ms max. | ||||||||
 band )1 ps max.
|
|||||||||
| Packing Unit | 1000pcs / reel | ||||||||
| Soldering Condition | 260°C , 10 sec x2 max | ||||||||

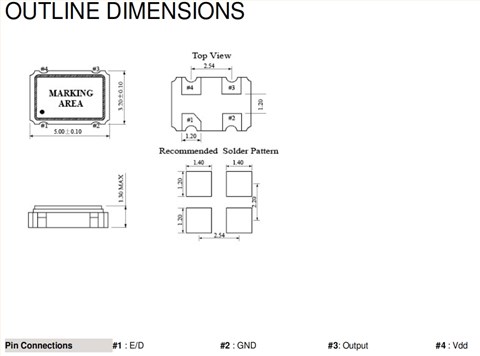

CMOS,FCD-Tech移动设备晶振,SX5CB-15F00E-32MHz,5032mm,32MHZ振荡器尺寸图
