XMP-6135-1A-12pF-40MHZ,KVG投影仪晶振,XMP-6100水晶振动子，尺寸6.0x3.5mm，频率40MHZ，德国KVG晶振，进口无源晶振，贴片陶瓷晶振，SMD无源晶振，6035mm无源晶振，无源晶振，SMD晶振，陶瓷谐振器，40MHZ贴片晶振，四脚贴片晶振，摄像机晶振，无铅环保晶振，高性能晶振，高品质晶振，高可靠晶振，低损耗晶振，低功耗晶振，投影仪晶振，按摩仪晶振，移动通信晶振，蓝牙模块晶振，无线设备晶振，便携式设备晶振，网络设备晶振，智能家居晶振，智慧医疗晶振，具有超高的可靠性能以及稳定性。
SMD晶振产品超级适合用于投影仪，按摩仪，移动通信，蓝牙模块，无线设备，便携式设备，网络设备，智能家居，智慧医疗等领域。XMP-6135-1A-12pF-40MHZ,KVG投影仪晶振,XMP-6100水晶振动子.

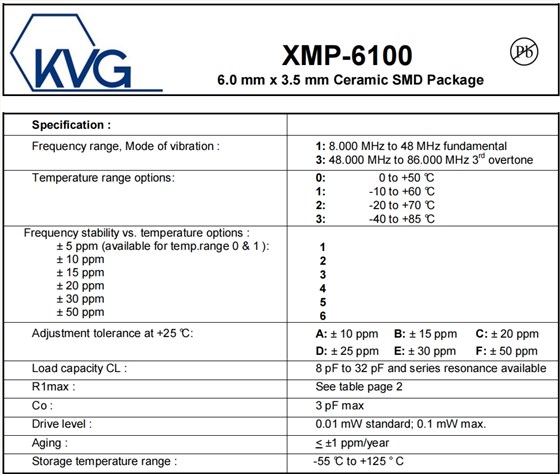

XMP-6135-1A-12pF-40MHZ,KVG投影仪晶振,XMP-6100水晶振动子 参数表
| Specification : | ||||||||||||||||||||||
| Frequency range, Mode of vibration : |
1:40 MHz fundamental 3:48.000 MHz to 86.000 MHz 3rdovertone |
|||||||||||||||||||||
| Temperature range options: |
0:0 to +50 °C 1:-10 to +60 °C 2:-20 to +70 °C 3:-40 to +85 °C |
|||||||||||||||||||||
|
Frequency stability vs. temperature options : ± 5 ppm (available for temp.range 0 & 1 ): |
1 2 3 4 5 6 |
|||||||||||||||||||||
|
± 10 ± 15 ± 20 ± 30 ± 50 |
ppm ppm ppm ppm ppm |
|||||||||||||||||||||
| Adjustment tolerance at +25 °C: |
A:± 10 D:± 25 |
ppm ppm |
B:± 15 E:± 30 |
ppm ppm |
C:± 20 F:± 50 |
ppm ppm |
||||||||||||||||
| Load capacity CL : | 8 pF to 32 pF and series resonance available | |||||||||||||||||||||
| R1max : | See table page 2 | |||||||||||||||||||||
| Co : | 3 pF max | |||||||||||||||||||||
| Drive level : | 0.01 mW standard; 0.1 mW max. | |||||||||||||||||||||
| Aging : | <±1 ppm/year | |||||||||||||||||||||
| Storage temperature range : | -55 °C to +125 ° C | |||||||||||||||||||||

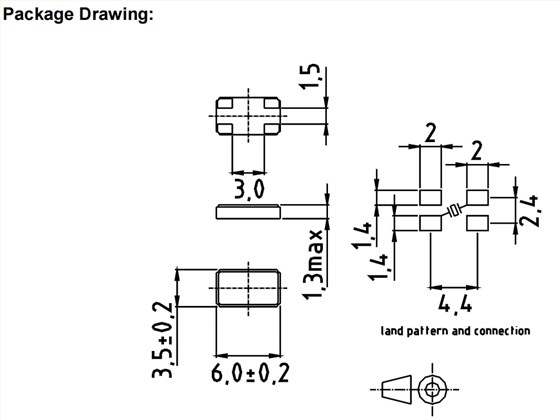

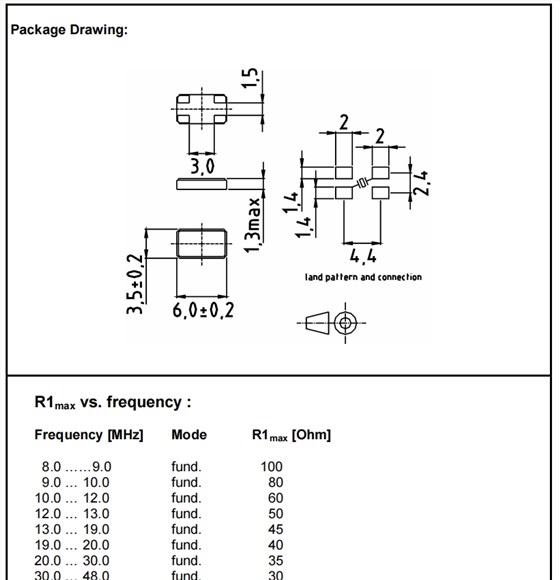

XMP-6135-1A-12pF-40MHZ,KVG投影仪晶振,XMP-6100水晶振动子 尺寸图
XMP-6135-1A-12pF-40MHZ,KVG投影仪晶振,XMP-6100水晶振动子
陶瓷晶振产品特点：
6.0毫米x 3.5毫米陶瓷SMD封装
可靠性高，老化程度低
符合RoHS标准且无铅
