XTL751-S999-420,XTL75,32.768KHz,1610mm,Siward手表晶体

产品简介

XTL751-S999-420,XTL75,32.768KHz,1610mm,Siward手表晶体，台湾Siward晶振，希华晶振，编码为：XTL751-S999-420，型号：XTL75，负载：7pF，精度：±20ppm，频率：32.768KHz，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0x0.5mm封装，两脚贴片晶振，石英晶振，手表晶体，1610晶振，无源晶振，石英晶体谐振器，SMD晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高可靠性晶振，高品质晶振，耐热及耐环境等特点。被广泛应用于：无线蓝牙晶振、无线局域网晶振，智能表计晶振，钟表电子晶振，智能家居晶振等应用。

产品详情

XTL751-S999-420,XTL75,32.768KHz,1610mm,Siward手表晶体,参数表

Model	XTL75
Nominal frequency range	32.768kHz
Storage temperature range	-55 ~ +125℃
Operating temperature range	-40 ~ +85℃
Frequency tolerance (at +25℃)	±20×10-6
Load capacitance	6pF, 7pF, 9pF, 12.5pF
Equivalent series resistance	90 kΩMax.
Shunt capacitance	1.2 pF Typ.
Motional capacitance	6.0 fF Typ.
Turnover Temperature	+25℃±5℃
Parabolic Coecient	-0.04 ppm /℃2Max.
Level of drive	0.1μW (0.5μW Max.)
Aging	±3ppm / Year

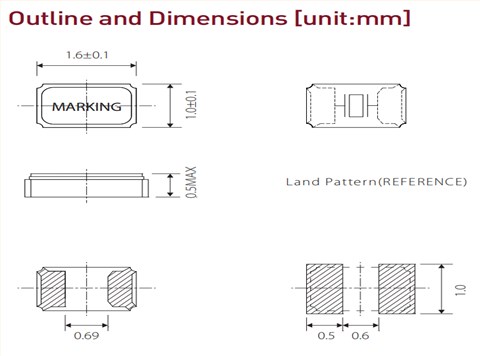

XTL751-S999-420,XTL75,32.768KHz,1610mm,Siward手表晶体,尺寸图
