当前位置：首页 » 日产晶振 » 爱普生晶振 » EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器
EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器
prevnext

EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器

频率：212.5MHZ

尺寸：7.0*5.0mm

EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器，尺寸为7.0*5.0mm,频率为212.5MHZ,输出逻辑LVDS，OSC差分晶振，差分晶体振荡器，EPSON差分晶振，差分晶振LVDS，低电压差分振荡器，低相位差分晶振，高频差分晶振，低损耗差分振荡器，6G光模块差分晶振，差分贴片晶振，6G路由器差分晶振，无线设备差分晶振，产品具备低电压电相位的特点。

差分晶振优点是抗干扰能力强，缺点是布线需注意。
1）电平幅度大，信号高低电平之间的转换时间长，不适用于传输频率达到100MHZ以上的信号
2）输出信号为单端信号（一条线），传输路径受到干扰，不利于长线传输
3）功耗大，大家都知道TTL器件的静态功耗较大，即使静态功耗小的CMOS器件，由于电平摆幅宽，其动态功耗也偏大。EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器.


订购热线：86-0755-27838351
QQ咨询 点击这里给我发消息

1

EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器，尺寸为7.0*5.0mm,频率为212.5MHZ,输出逻辑LVDS，OSC差分晶振，差分晶体振荡器，EPSON差分晶振，差分晶振LVDS，低电压差分振荡器，低相位差分晶振，高频差分晶振，低损耗差分振荡器，6G光模块差分晶振，差分贴片晶振，6G路由器差分晶振，无线设备差分晶振，产品具备低电压电相位的特点。

差分晶振优点是抗干扰能力强，缺点是布线需注意。
1）电平幅度大，信号高低电平之间的转换时间长，不适用于传输频率达到100MHZ以上的信号
2）输出信号为单端信号（一条线），传输路径受到干扰，不利于长线传输
3）功耗大，大家都知道TTL器件的静态功耗较大，即使静态功耗小的CMOS器件，由于电平摆幅宽，其动态功耗也偏大。EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器.2

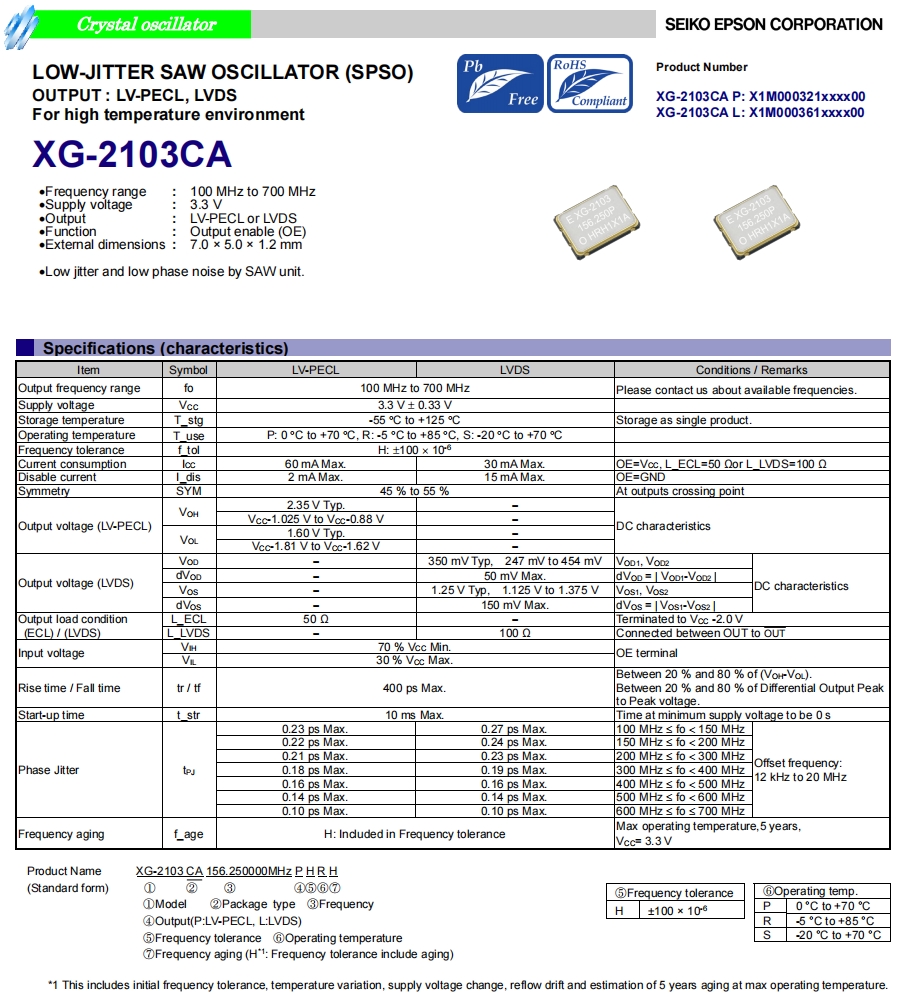

EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器     参数表

     Specifications (characteristics)
Item Symbol LV-PECL LVDS Conditions / Remarks
Output frequency range fo 212.5 MHz Please contact us about available frequencies.
Supply voltage VCC 3.3 V ± 0.33 V
Storage temperature T_stg -55 °C to +125 °C Storage as single product.
Operating temperature T_use P: 0 °C to +70 °C, R: -5 °C to +85 °C , S: -20 °C to +70 °C
Frequency tolerance f_tol H: ±100 × 10-6
Current consumption ICC 60 mA Max. 30 mA Max. OE=VCC, L_ECL=50 Ωor L_LVDS=100 Ω
Disable current I_dis 2 mA Max. 15 mA Max. OE=GND
Symmetry SYM 45 % to 55 % At outputs crossing point
Output voltage (LV-PECL) VOH 2.35 V Typ. − DC characteristics
VCC- 1.025 V to VCC-0.88 V −
VOL 1.60 V Typ. −
VCC- 1.81 V to VCC- 1.62 V −
Output voltage (LVDS) VOD − 350 mV Typ,   247 mV to 454 mV VOD1 , VOD2 DC characteristics
dVOD − 50 mV Max. dVOD  = | VOD1-VOD2  |
VOS − 1.25 V Typ,   1.125 V to 1.375 V VOS1 , VOS2
dVOS − 150 mV Max. dVOS  = | VOS1-VOS2  |
Output load condition
(ECL) / (LVDS) 		L_ECL 50 Ω − Terminated to VCC -2.0 V
L_LVDS − 100 Ω Connected between OUT to OUT
Input voltage VIH 70 % VCC  Min. OE terminal
VIL 30 % VCC  Max.
Rise time / Fall time tr / tf 400 ps Max. Between 20 % and 80 % of (VOH-VOL).
Between 20 % and 80 % of Differential Output Peak
to Peak voltage.
Start-up time t_str 10 ms Max. Time at minimum supply voltage to be 0 s
Phase Jitter tPJ 0.23 ps Max. 0.27 ps Max. 100 MHz ≤ fo < 150 MHz Offset frequency:
12 kHz to 20 MHz
0.22 ps Max. 0.24 ps Max. 150 MHz ≤ fo < 200 MHz
0.21 ps Max. 0.23 ps Max. 200 MHz ≤ fo < 300 MHz
0.18 ps Max. 0.19 ps Max. 300 MHz ≤ fo < 400 MHz
0.16 ps Max. 0.16 ps Max. 400 MHz ≤ fo < 500 MHz
0.14 ps Max. 0.14 ps Max. 500 MHz ≤ fo < 600 MHz
0.10 ps Max. 0.10 ps Max. 600 MHz ≤ fo ≤ 700 MHz
Frequency aging f_age H: Included in Frequency tolerance Max operating temperature,5 years,
VCC= 3.3 V
3

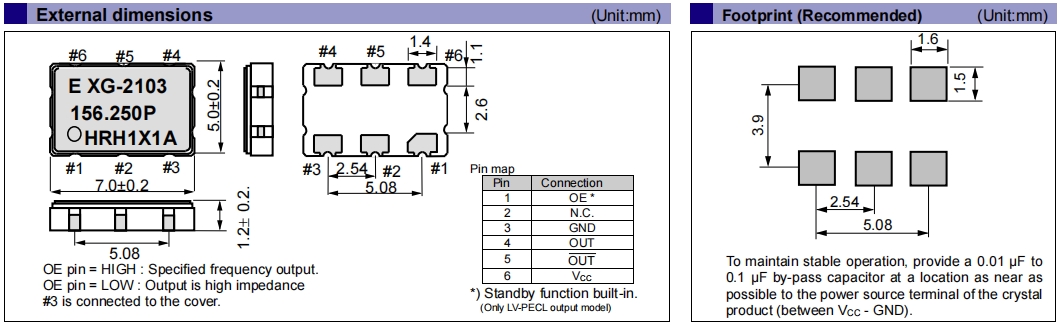

EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器    尺寸图XG-2103CA

OSC晶振产品特性：

频率范围:100mhz ~ 700mhz

电源电压:3.3 V

输出:LV-PECL或LVDS

外部尺寸:7.0 × 5.0 × 1.2 mm

低抖动和低相位噪声由SAW单元。XG-2103CA 1更多相关日本EPSON晶振型号

编码 品牌 型号 频率 尺寸 输出方式 电源电压 工作温度
X1G0042810049 爱普生晶振 SG7050VAN 75.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810050 爱普生晶振 SG7050VAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810052 爱普生晶振 SG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810053 爱普生晶振 SG7050VAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810054 爱普生晶振 SG7050VAN 312.515625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810055 爱普生晶振 SG7050VAN 161.132800 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810058 爱普生晶振 SG7050VAN 125.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810059 爱普生晶振 SG7050VAN 125.006250 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810061 爱普生晶振 SG7050VAN 100.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810062 爱普生晶振 SG7050VAN 200.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810063 爱普生晶振 SG7050VAN 400.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810064 爱普生晶振 SG7050VAN 106.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810065 爱普生晶振 SG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810066 爱普生晶振 SG7050VAN 74.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810067 爱普生晶振 SG7050VAN 148.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810068 爱普生晶振 SG7050VAN 75.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810069 爱普生晶振 SG7050VAN 150.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810071 爱普生晶振 SG7050VAN 156.250000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810072 爱普生晶振 SG7050VAN 312.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810073 爱普生晶振 SG7050VAN 312.515625 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810074 爱普生晶振 SG7050VAN 161.132800 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810079 爱普生晶振 SG7050VAN 50.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810080 爱普生晶振 SG7050VAN 68.750000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810083 爱普生晶振 SG7050VAN 50.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810084 爱普生晶振 SG7050VAN 68.750000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810087 爱普生晶振 SG7050VAN 50.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810088 爱普生晶振 SG7050VAN 68.750000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810091 爱普生晶振 SG7050VAN 50.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810092 爱普生晶振 SG7050VAN 68.750000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -20 to 70 °C
X1G0042810096 爱普生晶振 SG7050VAN 148.350000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810102 爱普生晶振 SG7050VAN 98.304000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810103 爱普生晶振 SG7050VAN 80.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810104 爱普生晶振 SG7050VAN 114.285000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810105 爱普生晶振 SG7050VAN 250.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1G0042810106 爱普生晶振 SG7050VAN 350.000000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.250 to 3.630 V -40 to 85 °C
X1M0001210001 爱普生晶振 EG-2103CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 3.000 to 3.600 V -5 to 85 °C
X1M0001510002 爱普生晶振 EG-4101CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510003 爱普生晶振 EG-4101CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510004 爱普生晶振 EG-4101CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510005 爱普生晶振 EG-4101CA 148.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510006 爱普生晶振 EG-4101CA 240.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510007 爱普生晶振 EG-4101CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510008 爱普生晶振 EG-4101CA 148.351640 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001510009 爱普生晶振 EG-4101CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.465 V -40 to 85 °C
X1M0001810001 爱普生晶振 EG-4121CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1M0001810002 爱普生晶振 EG-4121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1M0001810003 爱普生晶振 EG-4121CA 148.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1M0001810004 爱普生晶振 EG-4121CA 375.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1M0001810005 爱普生晶振 EG-4121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1M0001810006 爱普生晶振 EG-4121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -40 to 85 °C
X1M0002210002 爱普生晶振 EG-2102CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002210003 爱普生晶振 EG-2102CB 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002210004 爱普生晶振 EG-2102CB 266.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210005 爱普生晶振 EG-2102CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210006 爱普生晶振 EG-2102CB 148.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210007 爱普生晶振 EG-2102CB 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0002210008 爱普生晶振 EG-2102CB 148.351648 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002210009 爱普生晶振 EG-2102CB 148.350000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210010 爱普生晶振 EG-2102CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0002210011 爱普生晶振 EG-2102CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0002310002 爱普生晶振 EG-2121CB 125.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310003 爱普生晶振 EG-2121CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310004 爱普生晶振 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310005 爱普生晶振 EG-2121CB 402.832000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310006 爱普生晶振 EG-2121CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -20 to 70 °C
X1M0002310007 爱普生晶振 EG-2121CB 133.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310010 爱普生晶振 EG-2121CB 500.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310011 爱普生晶振 EG-2121CB 402.832031 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310013 爱普生晶振 EG-2121CB 100.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0002310014 爱普生晶振 EG-2121CB 441.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310015 爱普生晶振 EG-2121CB 625.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0002310016 爱普生晶振 EG-2121CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0002310017 爱普生晶振 EG-2121CB 644.531250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310018 爱普生晶振 EG-2121CB 322.265625 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310019 爱普生晶振 EG-2121CB 233.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310020 爱普生晶振 EG-2121CB 200.000000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002310021 爱普生晶振 EG-2121CB 644.531250 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0002810003 爱普生晶振 EG-2103CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0002810004 爱普生晶振 EG-2103CB 212.500000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0002810006 爱普生晶振 EG-2103CB 156.250000 MHz 5.00 x 3.20 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410004 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410005 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410006 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410007 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410008 爱普生晶振 XG-2102CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410009 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410010 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410011 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410012 爱普生晶振 XG-2102CA 402.832000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410013 爱普生晶振 XG-2102CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410014 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410015 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410016 爱普生晶振 XG-2102CA 500.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410017 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410018 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410019 爱普生晶振 XG-2102CA 133.333000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410020 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410021 爱普生晶振 XG-2102CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410022 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410023 爱普生晶振 XG-2102CA 322.265625 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410024 爱普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410025 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410026 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410027 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410028 爱普生晶振 XG-2102CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410029 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410030 爱普生晶振 XG-2102CA 192.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410031 爱普生晶振 XG-2102CA 140.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410032 爱普生晶振 XG-2102CA 166.666666 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410033 爱普生晶振 XG-2102CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410034 爱普生晶振 XG-2102CA 122.880000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410035 爱普生晶振 XG-2102CA 388.080000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410036 爱普生晶振 XG-2102CA 625.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410037 爱普生晶振 XG-2102CA 161.133000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410038 爱普生晶振 XG-2102CA 700.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410039 爱普生晶振 XG-2102CA 625.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410040 爱普生晶振 XG-2102CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410041 爱普生晶振 XG-2102CA 166.666700 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410042 爱普生晶振 XG-2102CA 700.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410043 爱普生晶振 XG-2102CA 644.532150 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410044 爱普生晶振 XG-2102CA 439.453125 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003410045 爱普生晶振 XG-2102CA 161.133000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410047 爱普生晶振 XG-2102CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410048 爱普生晶振 XG-2102CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003410049 爱普生晶振 XG-2102CA 144.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410050 爱普生晶振 XG-2102CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0003410052 爱普生晶振 XG-2102CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V 0 to 70 °C
X1M0003510001 爱普生晶振 XG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510002 爱普生晶振 XG-2121CA 133.330000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510003 爱普生晶振 XG-2121CA 150.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510004 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510005 爱普生晶振 XG-2121CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510006 爱普生晶振 XG-2121CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510007 爱普生晶振 XG-2121CA 402.832000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510008 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510009 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510010 EPSON Crystal XG-2121CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510011 爱普生晶振 XG-2121CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510012 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510013 爱普生晶振 XG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510014 爱普生晶振 XG-2121CA 133.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510015 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510016 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510017 爱普生晶振 XG-2121CA 320.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510018 爱普生晶振 XG-2121CA 320.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510019 爱普生晶振 XG-2121CA 320.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510020 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510021 爱普生晶振 XG-2121CA 312.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510022 爱普生晶振 XG-2121CA 300.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510029 爱普生晶振 XG-2121CA 402.832000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510030 爱普生晶振 XG-2121CA 322.265625 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510032 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510033 爱普生晶振 XG-2121CA 322.265625 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510034 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510035 爱普生晶振 XG-2121CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510036 爱普生晶振 XG-2121CA 100.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510037 爱普生晶振 XG-2121CA 125.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510038 爱普生晶振 XG-2121CA 156.250000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V -5 to 85 °C
X1M0003510039 爱普生晶振 XG-2121CA 200.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003510040 爱普生晶振 XG-2121CA 250.000000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.375 to 2.625 V 0 to 70 °C
X1M0003610001 爱普生晶振 XG-2103CA 212.500000 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -5 to 85 °C
X1M0003610002 爱普生晶振 XG-2103CA 133.333333 MHz 7.00 x 5.00 x 1.20 mm LVDS 2.970 to 3.630 V -20 to 70 °C
X1M0004210002 爱普生晶振 MG7050VAN 212.500000 MHz 7.00 x 5.00 x 1.60 mm LVDS 2.970 to 3.630 V 0 to 70 °C

5

深圳市康华尔电子有限公司

QQ联系
632862232
服务热线
138-2330-0879
电话
86-0755-27838351
邮 箱
konuaer@163.com
传 真
+86-0755-27883106
公司地址
广东深圳市宝安宝安大道东95号浙商银行大厦1905
  • 康华尔微信
  • 康华尔公众号
EPSON爱普生晶振 X1M0003610001 6G模块晶振 XG-2103CA石英差分振荡器

采购：EPSON爱普生晶振,X1M0003610001,6G模块晶振,XG-2103CA石英差分振荡器

  • *联系人：
  • *手机：
  • 公司名称：
  • 邮箱：
  • *采购意向：
  • *验证码：验证码

跟此产品相关的产品 / Related Products

SX3HK,SX3HK25K50E-52MHz,HCSL,荷兰FCD-Tech差分晶振,3225mm
SX3HK,SX3HK25K50E-52MHz,HCSL,荷兰FCD-Tech差分晶振,3225mm

SX3HK,SX3HK25K50E-52MHz,HCSL,荷兰FCD-Tech差分晶振,3225mm,有源晶体振荡器,荷兰进口晶振,六脚差分晶振,3225mm晶振,SX3HK振荡器,HCSL输出晶振,差分贴片晶振,石英差分晶振,尺寸3.2x2.5mm,频率52MHZ,输出HCSL,耐高温晶振,低相位晶振,低相噪晶振,低电流晶振,多媒体设备晶振,仪器设备晶振,测试设备晶振,数字视频晶振.

FCD-Tech机顶盒晶振,SX3EK33F20E-48MHz,LVPECL,3225mm,48MHZ
FCD-Tech机顶盒晶振,SX3EK33F20E-48MHz,LVPECL,3225mm,48MHZ
FCD-Tech机顶盒晶振,SX3EK33F20E-48MHz,LVPECL,3225mm,48MHZ,荷兰进口晶振,六脚差分晶振,3225mm时钟振荡器,有源贴片晶振,48MHZ有源晶振,LVPECL差分晶振,差分晶体振荡器,贴片差分晶振,尺寸3.2x2.5mm,频率48MHZ,输出逻辑LVPECL,低抖动晶振,低电压晶振,低相位晶振,低相噪晶振,SDH应用晶振,无线路由器晶振,小家电晶振,机顶盒晶振.
Si591视听设备晶振,591BC200M000DG,思佳讯SMD差分晶振
Si591视听设备晶振,591BC200M000DG,思佳讯SMD差分晶振

Si591视听设备晶振,591BC200M000DG,思佳讯SMD差分晶振，尺寸7.0x5.0mm，频率200MHZ，输出逻辑LVDS，电压3.3V，频率稳定性20ppm，Skyworks差分晶振，思佳讯LVDS有源振荡器，六脚差分振荡器，贴片差分晶振，7050mm差分晶振，有源差分振荡器，差分晶振LVDS，差分晶体振荡器，石英差分振荡器，低电压差分晶振，低耗能差分晶振，高精度差分晶振，高频差分振荡器，低损耗差分振荡器，低抖动差分晶振，低功耗差分晶振，低相位差分晶振，低相噪差分晶振，视听设备差分晶振，北斗导航差分晶振，仪器仪表差分晶振，无线模块专用差分晶振，测试测量差分晶振，交换机差分晶振，卫星通信专用差分晶振，具有低抖动低相位的特点。

贴片差分晶振产品比较适合用于视听设备，北斗导航，仪器仪表，无线模块，测试测量，交换机，卫星通信等领域.Si591视听设备晶振,591BC200M000DG,思佳讯SMD差分晶振.

产品中心 Product Center

晶振厂家

欧美晶振

台产晶振

日产晶振

有源晶振

贴片晶振

32.768K

陶瓷雾化片

声表面滤波器

应用领域

日产晶振应用领域

欧美晶振应用领域

有源晶振应用领域

联系康华尔Contact us
咨询热线：075527838351

电话：+86-0755-27838351

手机：13823300879

QQ：632862232

邮箱：konuaer@163.com

地址：广东深圳市宝安宝安大道东95号浙商银行大厦1905

晶振厂家台产晶振日产晶振欧美晶振32.768K有源晶振技术支持常见问题联系KON网站地图
晶振快速通道

陶瓷雾化片 微孔雾化片 声表面滤波器 陶瓷晶振 32.768K 石英晶振 贴片晶振 有源晶振 KDS晶振 爱普生晶振 京瓷晶振 NDK晶振 TXC晶振 加高晶振 鸿星晶振 差分晶振 CTS晶振 IQD晶振 SiTime晶振 Abracon晶振 3215晶振 7015晶振 3225晶振 2520晶振

深圳市康华尔电子有限公司

官方微信官方微信

康华尔公众号康华尔公众号

Copyright ®2018　康华尔电子科技有限公司　版权所有 粤ICP备11060852号-5
