康纳温菲尔德LVCMOS振荡器,CW311-050.0M,低电压6G晶振

频率：50.000MHz

尺寸：3.2x2.5mm

康纳温菲尔德LVCMOS振荡器,CW311-050.0M,低电压6G晶振，欧美晶振，进口晶振，ConnorWinfield康纳温菲尔德晶振，CW3xx系列晶振，编码为：CW311-050.0M，频率为：50.000MHz，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，石英晶体振荡器，LVCMOS时钟振荡器，石英晶振。康纳-温菲尔德CW3xx系列3225mm，LCMOS，表面安装，晶体控制振荡器（XO）是为要求低抖动和紧密频率稳定性的应用而设计的。RoHS兼容的表面安装包是设计为高密度安装，是最佳的大规模生产。有源晶振，适用于：通讯设备，无线网络，蓝牙模块，物联网，GPS定位，导航仪，罗拉模块，车载控制器，医疗设备等应用。

订购热线：86-0755-27838351

康纳温菲尔德LVCMOS振荡器,CW311-050.0M,低电压6G晶振 参数表

Operating Specifications
Parameter Minimum Nominal Maximum

Units Notes

Output Frequency (Fo) 50

MHz

Total Frequency Tolerance: (See Ordering Information on page 2.)
      Model CW3x1                                -25                    -                    25
      Model CW3x2                                -50                    -                    50
      Model CW3x3                               -100                   -                    100

     ppm             1
     ppm             1
     ppm             1

Operating Temperature Range: (See Ordering Information on page 2.)
CW31x, CW32x, CW33x, CW34x -10 - 70
CW35x, CW36x, CW37x, CW38x -40 - 85

°C
°C

Supply Voltage (Vcc) 1.710 3.465

Vdc

Supply Current (Icc)
1.8V Models - - 10
2.5V, 2.8V. 3.3v Models - - 20

mA
mA

Jitter:
Period Jitter
Integrated Phase Jitter

-
-

3
0.3

5
1

ps RMS
ps RMS 2

SSB Phase Noise Fo = 125 MHz
                @ 10 Hz offset
                @ 100 Hz offset
                @ 1 KHz offset
                @ 10 KHz offset
                @ 100 KHz offset

-60
-90
-115
-125
-135

dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz
dBc/Hz

Start Up Time - 2 5

Input Characteristics
Parameter Minimum Nominal Maximum

Units Notes

Enable Input Voltage - (Vih) 70%Vcc - -

Vdc 3

Disable Input Voltage - (Vil) - - 30%Vcc

Vdc 3

Standby Current (Osc. Disabled) - - 10

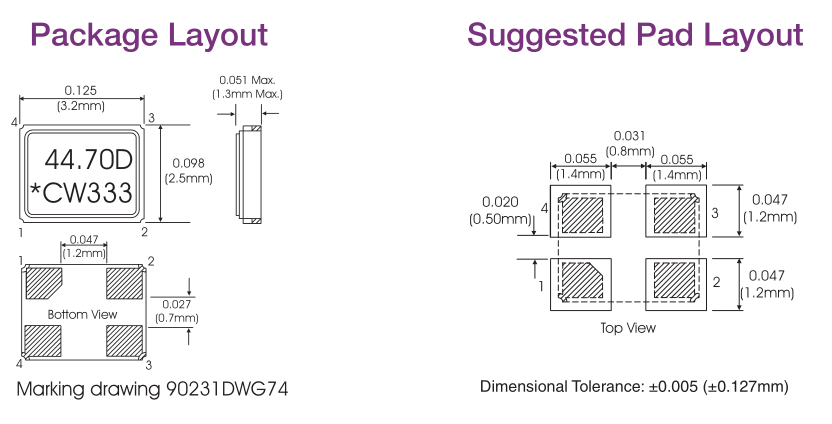

康纳温菲尔德LVCMOS振荡器,CW311-050.0M,低电压6G晶振 尺寸图

康纳温菲尔德LVCMOS振荡器,CW311-050.0M,低电压6G晶振

产品特点：

小型尺寸：3.2x2.5mm石英贴片晶振

功能：供应电压： 1.8V，2.5V，2.8V或3.3V

工作频率公差： ± 25ppm，± 50ppm或± 100ppm

温度范围： -10到70°C或-40至85°C

LVCMOS输出逻辑

三态启用/禁用垫1

低抖动： <1ps RMS

陶瓷表面安装包装

胶带和卷轴包装

符合RoHS标准/无铅的要求

原厂代码	晶振厂家	型号	频率	工作温度	包装/封装
CWX823-012.0M	ConnorWinfield晶振	CWX823	12MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-024.0M	ConnorWinfield晶振	CWX823	24MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-050.0M	ConnorWinfield晶振	CWX823	50MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-032.768M	ConnorWinfield晶振	CWX823	32.768MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-018.432M	ConnorWinfield晶振	CWX823	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-049.152M	ConnorWinfield晶振	CWX823	49.152MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-016.0M	ConnorWinfield晶振	CWX823	16MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-012.288M	ConnorWinfield晶振	CWX823	12.288MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-020.0M	ConnorWinfield晶振	CWX823	20MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-027.0M	ConnorWinfield晶振	CWX823	27MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-033.333M	ConnorWinfield晶振	CWX823	33.333MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-024.0M	ConnorWinfield晶振	CWX813	24MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-012.0M	ConnorWinfield晶振	CWX813	12MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-018.432M	ConnorWinfield晶振	CWX813	18.432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-001.8432M	ConnorWinfield晶振	CWX813	1.8432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-007.3728M	ConnorWinfield晶振	CWX813	7.3728MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-010.0M	ConnorWinfield晶振	CWX813	10MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-025.0M	ConnorWinfield晶振	CWX813	25MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-027.0M	ConnorWinfield晶振	CWX813	27MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-033.0M	ConnorWinfield晶振	CWX813	33MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-040.0M	ConnorWinfield晶振	CWX813	40MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-060.0M	ConnorWinfield晶振	CWX813	60MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-004.0M	ConnorWinfield晶振	CWX813	4MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-016.0M	ConnorWinfield晶振	CWX813	16MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-100.0M	ConnorWinfield晶振	CWX823	100MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-080.0M	石英晶振	CWX813	80MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-064.0M	ConnorWinfield晶振	CWX813	64MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-001.544M	ConnorWinfield晶振	CWX823	1.544MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-040.0M	ConnorWinfield晶振	CWX823	40MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-033.0M	ConnorWinfield晶振	CWX823	33MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-004.0M	ConnorWinfield晶振	CWX823	4MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-025.0M	ConnorWinfield晶振	CWX823	25MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-001.8432M	ConnorWinfield晶振	CWX823	1.8432MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-100.0M	ConnorWinfield晶振	CWX813	100MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-064.0M	ConnorWinfield晶振	CWX823	64MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-044.736M	ConnorWinfield晶振	CWX813	44.736MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-012.288M	ConnorWinfield晶振	CWX813	12.288MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-019.44M	ConnorWinfield晶振	CWX813	19.44MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-024.576M	ConnorWinfield晶振	CWX813	24.576MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-030.0M	ConnorWinfield晶振	CWX813	30MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-020.0M	ConnorWinfield晶振	CWX813	20MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-020.48M	ConnorWinfield晶振	CWX813	20.48MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-049.152M	ConnorWinfield晶振	CWX813	49.152MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-050.0M	ConnorWinfield晶振	CWX813	50MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-029.4912M	ConnorWinfield晶振	CWX813	29.4912MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX813-066.6666M	ConnorWinfield晶振	CWX813	66.6666MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-125.0M	ConnorWinfield晶振	CWX823	125MHz	-20°C ~ 70°C	4-SMD, No Lead
CWX823-156.25M	ConnorWinfield晶振	CWX823	156.25MHz	-20°C ~ 70°C	4-SMD, No Lead
